To test an AA battery with a multimeter, set the multimeter to the DC voltage mode, indicated by a “V” with a straight line (⎓) next to it, and select a range higher than the battery’s expected voltage, such as 2V or 20V if your meter is not auto-ranging. This quick check tells you whether the battery still has usable charge or needs replacing, saving you from tossing a good battery or troubleshooting a device that won’t power on.
How to test an AA battery with a multimeter: Step-by-step instructions
- Inspect the battery for any signs of damage or leakage before testing; test only dry, intact batteries.
- Set the multimeter to DC voltage mode. Turn the dial to the DC voltage setting (often labeled “V⎓” or “VDC”). If your multimeter is not auto-ranging, choose a range that covers the expected voltage, for AA batteries, a 2V or 20V range is usually appropriate.
- Connect the probes to the correct jacks. Insert the black test lead into the “COM” (common) jack and the red test lead into the “V” (voltage) jack on the multimeter.
- Touch the probes to the battery terminals. Connect the red probe to the positive (+) terminal of the AA battery and the black probe to the negative (-) terminal. Ensure a secure connection for an accurate reading.
- Read the voltage on the display. The multimeter will show the battery’s current voltage. If the probes are connected in reverse, the display will show a negative voltage reading, no damage occurs, so simply swap the probe positions.
- Disconnect the multimeter probes from the battery terminals after testing is complete to conserve the battery's charge and avoid accidental drain.
Understanding your voltage reading
Interpreting the voltage depends on the type of AA battery you are testing:
- Non-rechargeable alkaline AA batteries: A new, fresh alkaline battery typically measures between 1.5V and 1.7V. A dead non-rechargeable alkaline AA battery will typically read below 1.2V.
- Rechargeable NiMH AA batteries: These have a nominal voltage of 1.2V. A fully charged NiMH battery will measure around 1.4V and can drop to about 1.0V when depleted.
- Negative reading: If you see a negative voltage, you have reversed the probe connections. No damage occurs, simply swap the red and black probes for a correct positive reading.
When to replace your AA battery
Replace a non-rechargeable alkaline AA battery when its voltage falls below 1.2V, as it will no longer reliably power most devices. For rechargeable NiMH batteries, replacement is warranted when the voltage drops to about 1.0V or the battery no longer holds a charge effectively. Also replace any battery that shows signs of physical damage or leakage, regardless of its voltage reading. For deeper reference on voltage thresholds across different chemistries, consult AA and AAA battery specs (AA, AAA and Standard Battery Specifications).
Frequently Asked Questions
What multimeter setting should I use for an AA battery?
Set the multimeter to the DC voltage mode (V⎓). If your meter is not auto-ranging, select a range of 2V or 20V to cover the expected voltage of an AA battery.
Can I test rechargeable NiMH AA batteries the same way as alkaline?
Yes. The same DC voltage test applies. However, interpret the reading using the NiMH thresholds (fully charged around 1.4V, depleted around 1.0V) rather than the alkaline thresholds.
What voltage level indicates a dead AA battery?
For non-rechargeable alkaline AA batteries, a reading below 1.2V typically indicates a dead battery. For rechargeable NiMH AA batteries, the dead threshold is around 1.0V.
Does a low voltage reading always mean the battery is dead?
Not necessarily. A battery that has been sitting unused may recover some voltage after a short rest. However, if the voltage remains below the dead threshold (1.2V for alkaline, 1.0V for NiMH) under a light load, the battery is likely depleted.
Is it safe to test a leaking or damaged battery with a multimeter?
No. Do not test a battery that shows signs of leakage, swelling, or physical damage. Dispose of damaged batteries properly according to local regulations.
Can a multimeter measure anything besides voltage on an AA battery?

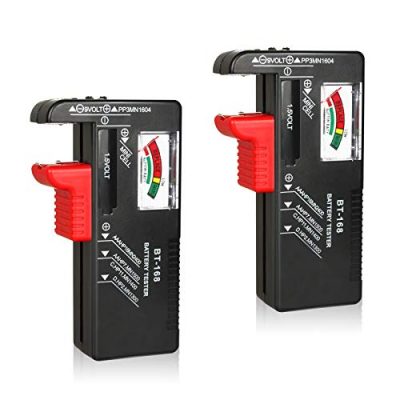

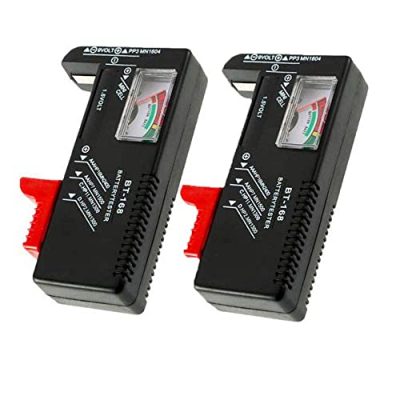

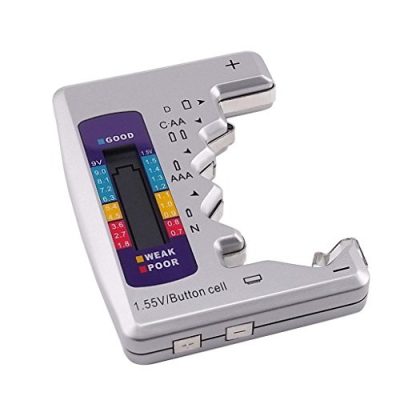

A standard multimeter measures only voltage, not capacity or internal resistance. For a comprehensive health check, specialized battery testers are required.
Can a multimeter detect other issues besides voltage in an AA battery?
No, a standard multimeter cannot detect capacity or internal resistance; it only measures voltage. Specialized battery testers are needed to assess those characteristics.
