Welcome to our guide on the 10 Best Mc4 Branch Connectors for 2023. As an expert content writer, I am thrilled to provide you with an in-depth overview of these cutting-edge connectors that are set to revolutionize the solar industry. With the increasing demand for renewable energy sources, Mc4 branch connectors play a crucial role in efficiently connecting multiple solar panels within a system. In this guide, we have carefully selected and reviewed the top ten branch connectors that offer exceptional performance, durability, and compatibility with the latest solar technologies. Whether you are a professional installer or a homeowner looking to optimize your solar setup, this guide will help you make an informed decision to ensure the smooth operation and maximum output of your solar system in 2023 and beyond.
The BougeRV Solar Branch Connectors are designed to enable parallel connection between solar panels. This set includes 2 pairs of Y connectors; 1 male to 2 female and 1 female to 2 male. These connectors are compatible with solar cables or connectors ranging from 14AWG to 10AWG. The connectors feature an IP67 waterproof ring and a built-in lock to ensure stability and safety in outdoor environments. They are made with high-quality materials, including PPO material and copper with silver plating. With an easy plug and play installation, these connectors can be connected and disconnected by simply pressing your fingers on the built-in lock. BougeRV offers a generous 18-month warranty on this product.
Key Features
- Solar y branch connectors
- Waterproof and durable
- High security
- Easy install
- Warranty
Specifications
- Size: 2 Pairs MMF+FFM
Pros
- High quality
- Excellent durability
- Easy to install
- Quick charging
- Great build quality
Cons
- Tricky installation
With high-quality construction, waterproof design, and TÜV certification, the BougeRV Solar Branch Connectors provide a reliable solution for paralleling solar panels. The easy plug and play installation makes them user-friendly, and the 18-month warranty offers peace of mind. While the installation may be a bit tricky for some users, the overall performance and durability of these connectors make them a great choice for solar panel setups. Whether you need to connect additional panels or replace existing ones, the BougeRV Solar Branch Connectors offer a secure and efficient solution.

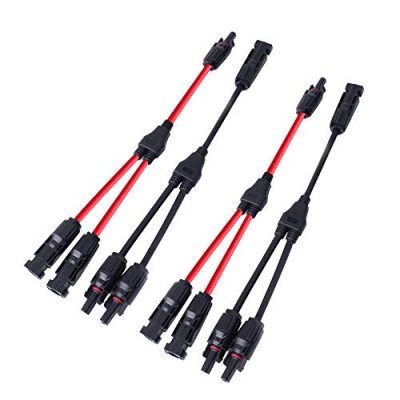

The PowMr 2 Pairs/4PCS Y Branch Connectors are perfect for creating parallel connections in a solar panel array. With tinned copper conductor pins and a waterproof ring, these connectors provide a rock solid connection that can withstand heavy loads and resist water and dust. They are also made with insulation material that offers excellent aging resistance and UV endurance, making them suitable for use in various weather conditions. These UL-certified connectors are fireproof and have a lower contact resistance. They feature a male to female and female to male design and are compatible with single core cables ranging from 1.5mm² to 6mm². With a high customer rating of 4.8/5, these connectors have received positive reviews for their ease of use, quick delivery, and sturdy construction.
Key Features
- 2 pairs/4 PCS branch connectors made of tinned copper
- Waterproof ring to prevent corrosion
- UL-certified with resistance to dust build-up
- Operating temperature range of -40℉ to 185℉
- Male to female and female to male design
- Compatible with single core cables from 1.5mm² to 6mm²
Specifications
- Color: 2 Pairs M/FF and F/MM
- Size: MC4 branch connectors, MC4 y connectors
Pros
- Quick delivery
- Easy to use
- Sturdy construction
- UL-certified
- Waterproof and dust-resistant
Cons
- Difficult mating due to rolled edges on male connector pins
- Some pins may be bent at a slight angle
- Crimp made too close to the barrel of the pin
The PowMr Y Branch Connectors are a reliable choice for creating parallel connections in solar panel arrays. With their high-quality construction and UL certification, they offer excellent performance and durability. The waterproof and dust-resistant design ensures long-lasting usage in various weather conditions. Although there are a few issues with the mating of connector pins, overall, the connectors provide a secure and efficient connection. With positive customer reviews and a high rating of 4.8/5, these connectors are an excellent investment for solar panel installations.

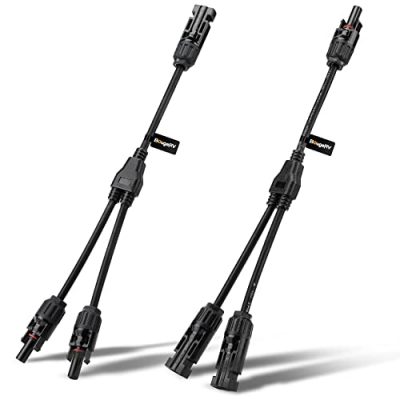

The BougeRV Solar Connectors Y Branch Parallel Adapter Cable Wire Plug Tool Kit is a versatile and reliable accessory for solar panels. This kit includes 1 male to 2 female (M/FF) and 1 female to 2 male (F/MM) solar connectors, allowing you to connect 2 solar panels in parallel. With a rated current of 20A and a rated voltage of DC1000V, the connectors are suitable for various solar cables ranging from 14-10AWG (1.5mm² – 6mm²). The connectors are IP67 waterproof, thanks to the built-in waterproof ring in the male connector and the high-quality PPO material that resists water, dust, ultraviolet rays, and high temperatures. Installation is quick and simple with the plug-and-play design. The connectors have received positive reviews for their durability, ease of use, and compatibility with different panels.
Key Features
- Y Branch Parallel Connector (M/FF and F/MM) for connecting 2 solar panels in parallel
- Rated Current: 20A, Rated Voltage: DC1000V
- Compatible with solar cables: 14-10AWG (1.5mm² – 6mm²)
- IP67 Waterproof with high-quality PPO material
- Plug and Play design for quick and simple assembly
Specifications
- Color: Black
- Dimension: 13.00Lx3.00Wx1.00H
- Size: 1 Pair M/FF and F/MM
Pros
- Durable build and secure connections
- Efficient power distribution
- Suitable for outdoor use
- Well-made withstanding constant weather
- Great value for money
- Quick delivery
- Works perfectly
Cons
- Connectors may slide off without pressing the clips
- Additional extenders may be required
- Extendable cables not readily available
The BougeRV Solar Connectors Y Branch Parallel Adapter Cable Wire Plug Tool Kit offers an excellent solution for connecting solar panels in parallel. With its durable build, secure connections, and efficient power distribution, this kit ensures reliable performance. The connectors are designed to withstand various weather conditions, making them suitable for outdoor use. While some users have experienced connectors sliding off, overall, the connectors have received positive feedback for their quality and affordability. It is worth considering this kit for those looking to expand their solar panel setups.
The LINKPAL Branch Connectors are a pair of MMF and FFM female cable connectors designed for parallel connection between solar panels. They are compatible with Solar connectors, also known as Solar T connectors. These connectors feature a stable self-locking system and are waterproof with an IP67 rating. They are made of corrosion-resistant material with excellent aging resistance and UV endurance. The connectors are CE and TUV certified and are made of hard plastic UL94-VO for stable transmission. They can be easily assembled and removed without any extra tools. These connectors are ideal for connecting solar panels in series parallel to double the power output. They separate positive and negative cables from solar panels and are suitable for use with multiple panels. The LINKPAL Branch Connectors have received positive customer reviews for their quality and ease of use.
Key Features
- 1 MMF and 1 FFM Female cable connectors
- Stable self-locking system, Waterproof IP67
- Corrosion-resistant with excellent aging resistance and UV endurance
- CE and TUV certified Hard plastic UL94-VO
- Quick & simple assembly and removal without extra tools
Specifications
- Size: 1 Pair
Pros
- Allows parallel connection between solar panels
- Easy to lock and open
- High-quality and durable construction
- Certified for stable transmission
Cons
- Plastic material may not be as strong as expected
The LINKPAL Branch Connectors are highly recommended for connecting solar panels in parallel. They offer a stable and reliable self-locking system and are waterproof for long-term usage. The connectors are made of high-quality materials and are certified for their performance. With their easy assembly and removal process, these connectors provide convenience and efficiency in connecting and disconnecting solar panels. While the plastic material used may not be as strong as some users would prefer, overall, the LINKPAL Branch Connectors offer great value for their price. Whether you’re a DIY solar panel user or a professional installer, these connectors are a reliable choice for optimizing the power output of your solar system.

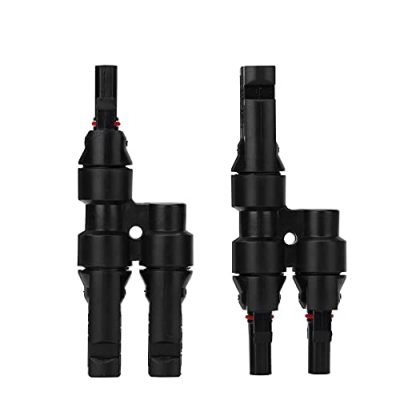

The eoocvt 1 Pair Solar Energy Panel MC-4 T Branch Connectors Cable Coupler Combiner is a reliable solution for parallel wiring of solar panels. Made of tin plated copper and insulated PPO, these connectors have a high load capability with big current and high voltage. They are resistant to extra high and low temperatures, making them fireproof. These MC-4 branch connectors are compatible with all MC-4 solar connectors, providing a quick and easy wiring solution. However, some users have experienced difficulties in releasing the tabs. Overall, this product offers a valuable solution for connecting solar panels in parallel.
Key Features
- -1 Pair of MC-4 Branch Connectors: Provides a quick and easy parallel wiring solution for solar panels
- -Compatible with all MC-4 solar connectors
- -Material: Tin plated copper and insulated PPO
- -Load capability with big current and high voltage
- -Resistance of extra high & low temperature and fireproof
Specifications
- Color: Black
Pros
- Easy and quick parallel wiring solution for solar panels
- Compatible with all MC-4 solar connectors
- High load capability with big current and high voltage
- Resistant to extra high & low temperature and fireproof
Cons
- Some users experienced difficulty in releasing the tabs
The eoocvt 1 Pair Solar Energy Panel MC-4 T Branch Connectors Cable Coupler Combiner is a reliable and efficient solution for parallel wiring of solar panels. Its compatibility with all MC-4 solar connectors makes it versatile and convenient. The connectors are made of high-quality materials, providing durability and high load capability. The resistance to extreme temperatures adds to its reliability. However, it’s important to note that some users have encountered challenges in releasing the tabs. Despite this drawback, the overall performance and value of the connectors make them a worthwhile purchase for those in need of parallel wiring for their solar panels.

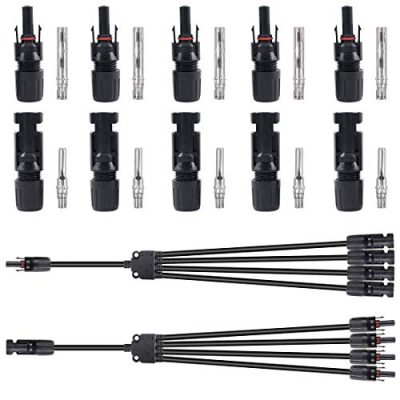

The Glarks 22Pcs Cable Connectors Solar Panel Extension Adaptor is a complete set of high-quality connectors for photovoltaic solar systems. Made with professional photovoltaic insulation plastic material, these connectors are waterproof, dustproof, and resistant to aging and UV. The Y branch 1 to 4 parallel adapter cable connectors are compatible with connector and ensure a rock solid connection. Installation is easy with the stable self-locking structure and automatic lock feature. These connectors are safe and reliable, with resistance to high and low temperatures and fireproof qualities. The set includes 1 pair Y branch of 1 male to 4 female (M/FFFF) and 1 female to 4 male (F/MMMM) cables, and 5 pair male/female solar panel cable connectors. Overall, the Glarks Cable Connectors provide a convenient and efficient solution for connecting solar panels.
Key Features
- 1 pair Y branch of 1 male to 4 female (M/FFFF) cables
- 1 female to 4 male (F/MMMM) cables
- 5 pair male/female solar panel cable connectors
- Professional photovoltaic insulation plastic material
- Waterproof and dustproof (IP67)
- Aging resistance and UV endurance
- Stable self-locking structure
- Safe and reliable for connecting photovoltaic solar systems
Specifications
Pros
- Easy to install with automatic lock feature
- Compatible with connector for solid connection
- Made with high-quality materials for durability
- Waterproof and dustproof
- Safe and reliable in various environments
Cons
- Branch connectors wires are stiff
- Additional connectors are not useful
The Glarks Solar Panel Cable Connectors provide a reliable and convenient solution for connecting solar panels. With a high-quality construction and excellent features like waterproof and dustproof design, these connectors ensure a secure connection even in harsh environments. The automatic lock feature and easy installation process make them user-friendly. However, some users have noted that the branch connectors wires are stiff, which may require extra effort during installation. Additionally, the included additional connectors may not be useful for all users. Overall, the Glarks Cable Connectors are a great choice for those looking for reliable and efficient connectors for their photovoltaic solar systems.
The Spartan Power Y Branch 2 to 1 Connector Parallel Solar Panel Cable Connectors MFF + MMF is a reliable and convenient solution for PV systems. With its easy snap-in design, you can connect and disconnect panels without the need for special tools. The connectors are rated for a voltage range of 1000V-1500V DC and a current of 30A. They are also IP67 waterproof and can withstand temperatures up to 221F. Made by Spartan Power, a trusted brand for battery cables and solar connectors, these connectors come with a two-year warranty. Customers have praised their quality, ease of use, and reasonable price. However, some have reported difficulty unplugging the connectors and questioned the crimp quality of the cables.
Key Features
- Easy snap-in design, no special tools necessary
- Rated voltage: 1000V-1500V DC, Rated current: 30A
- IP67 waterproof, 221F max operating temp
- Part of the Spartan Power family of quality battery cables and solar connectors
- Two year warranty
Specifications
- Dimension: 11.00Lx3.75Wx0.50H
Pros
- Quality connector with longer cords
- Easy to connect and disconnect
- Good fit and finish
- Reasonable price
Cons
- Difficulty unplugging connectors
- Questionable crimp quality of cables
- Conversion from Chinese instructions can be challenging
- Lack of support for the product
The Spartan Power Y Branch 2 to 1 Connector Parallel Solar Panel Cable Connectors MFF + MMF is a reliable solution for connecting solar panels in parallel. Its easy snap-in design and trusted brand reputation make it convenient and trustworthy. Customers appreciate its quality, ease of use, and reasonable price. However, some users have encountered difficulties with unplugging the connectors and questioned the crimp quality of the cables. Additionally, the lack of support and challenging conversion from Chinese instructions may be drawbacks for some users. Overall, if you’re in need of a parallel connector for your solar panels, the Spartan Power Y Branch Connector is worth considering.

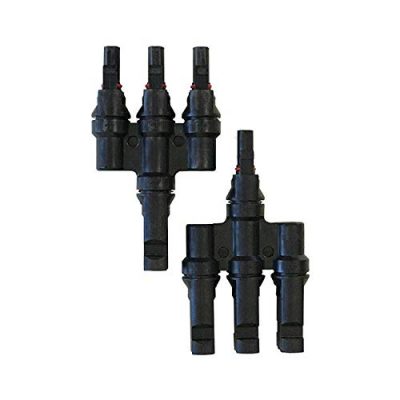

The Renogy Solar Male and Female MMMF+FFFM, 3 to 1 Branch Connectors are high-quality connectors designed for solar applications. With a rated current of 30A and maximum working voltage of DC1000V, these connectors are reliable and efficient. The connectors feature a 3 to 1 design, making them suitable for connecting multiple solar panels. They are easy to install and provide a secure connection. The plastic locking mechanism is sturdy and prevents accidental disconnection. The connectors have received positive reviews for their quality and performance. However, some customers have reported issues with the plastic tabs being flimsy. Overall, the Renogy Solar Male and Female MMMF+FFFM, 3 to 1 Branch Connectors are a reliable choice for solar installations.
Key Features
- Rated Current: 30A
- Insertion Force: < 50N
- Maximum working voltage: DC1000V
- 3 To 1 solar branch connectors mmmf+Fffm pair
Specifications
- Color: 3 to 1 Branch Connectors
- Dimension: 5.50Lx7.08Wx0.79H
- Size: 3 to 1 Branch Connectors
Pros
- Easy installation
- Secure and reliable connection
- High-quality design
Cons
- Flimsy plastic tabs
The Renogy Solar Male and Female MMMF+FFFM, 3 to 1 Branch Connectors are a solid choice for solar installations. They offer a secure and reliable connection, with a high-quality design. The connectors are easy to install and are suitable for connecting multiple solar panels. While some customers have reported issues with the plastic tabs being flimsy, overall, these connectors have received positive reviews for their performance. If you’re looking for a reliable solution for your solar system, the Renogy Solar Male and Female MMMF+FFFM, 3 to 1 Branch Connectors are worth considering.

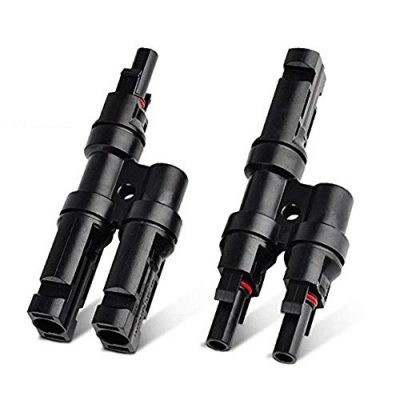

The BAYM Solar Panel T Branch Connector is a versatile and durable solution for connecting solar panels in parallel. With a waterproof and durable design, it ensures reliable performance even in harsh weather conditions. The T2 branch connector is compatible with solar connectors in 10AWG to 14AWG, making it suitable for various applications. The easy installation process and high-quality materials further enhance its usability. BAYM, a trusted producer of photovoltaic connectors, offers excellent customer service. With a solid customer rating of 4.4/5, this T branch connector is a reliable choice for solar panel installations.
Key Features
- 1 male to 2 female(M/FF) and 1 female to 2 male(F/MM)
- Waterproof and durable with IP67 waterproof ring
- High-security PPO insulation flame retardant material
- Easy installation with built-in lock
- Dedicated customer service from BAYM
Specifications
- N/A
Pros
- Easy and secure connection of solar panels
- Waterproof and durable design for outdoor use
- Resistant to severe weather conditions
- High-quality and reliable performance
- Excellent customer service
Cons
- Uncertainty around its design for permanent or portable use
- Minor issues with mounting and connector orientation
The BAYM Solar Panel T Branch Connector offers a reliable and convenient solution for connecting solar panels in parallel. Its waterproof and durable design, along with high-quality materials, ensure long-lasting performance even in challenging weather conditions. The easy installation process and dedicated customer service from BAYM further enhance the overall experience. However, there are minor drawbacks related to its design for permanent installation and potential limitations with mounting and connector orientation. Overall, this T branch connector provides good value for the price and is a suitable choice for those looking to expand their solar power generation system.
The JHBOX 1 to 3 Solar Panel Connector Y Branch Connector is a high-quality tool for connecting multiple solar panels in parallel. It comes with one pair of connectors, one male to three female (M/FFF) and one female to three male (F/MMM), making it compatible with mc4 connectors for solar panels and solar combiner boxes. The connectors are waterproof and durable, with an IP67 waterproof ring to prevent corrosion. They are certified by TÜV and made with premium materials that can withstand extreme temperatures. The connectors are easy to assemble and require no additional tools. JHBOX offers a one-year warranty on the product. Overall, this connector kit provides a reliable and efficient solution for connecting solar panels.
Key Features
- 3 to 1 Solar Panels Connector
- Waterproof & Durable Solar Extension Cable
- High Security Solar Panel Wire Splitter
- Easy to Assemble with Mc4 Connectors
- One Year Warranty
Specifications
- Color: Black
- Size: 1 Pair LQ-1Y3
Pros
- Easy to assemble and use
- Waterproof and durable
- Certified by TÜV
- Premium materials for temperature resistance
- One-year warranty included
Cons
- Relatively newer and unproven manufacturer
- Some users reported short and stiff wires
The JHBOX 1 to 3 Solar Panel Connector Y Branch Connector provides a reliable and efficient solution for connecting solar panels. Its waterproof and durable design, along with its easy assembly and compatibility with mc4 connectors, makes it a top choice for solar panel installations. The connectors are made with premium materials and have been certified by TÜV, ensuring high quality and safety. Although JHBOX is a newer manufacturer, the product has received positive reviews from customers. With a one-year warranty included, customers can have peace of mind knowing that they are backed by the manufacturer. Overall, this connector kit is a great investment for anyone looking to connect multiple solar panels in parallel.
Buyer’s Guide: MC4 Branch Connector
Welcome to our comprehensive buyer’s guide on MC4 branch connectors! Whether you’re a seasoned professional or a beginner in the world of renewable energy, this guide is here to assist you in making an informed decision when purchasing an MC4 branch connector. Read on and discover everything you need to know about this essential solar component.
Benefits of MC4 Branch Connectors:
- Streamlined installation process
- Efficient and reliable connections
- Secure and weatherproof connections
- Reduces wiring complexity
- Time-saving during system expansion or maintenance
Factors to Consider:
- Compatibility: Ensure that the MC4 branch connector is compatible with the MC4 connectors of your solar panels and the rest of your solar system components.
- Current and Voltage Rating: Select a branch connector that can handle the current and voltage of your solar system to guarantee safe and optimal performance.
- Quality and Durability: Look for connectors made from high-quality materials that are UV resistant, corrosion-resistant, and built to withstand extreme weather conditions.
- Waterproof Rating: Opt for connectors with a high waterproof rating, such as IP67, to ensure reliable and long-lasting connections in outdoor environments.
- Ease of Installation: Consider connectors that are easy to install, with clear and concise instructions, allowing for a smoother and hassle-free setup process.
- Certifications: Look for branch connectors that are certified by relevant industry standards to ensure compliance, safety, and performance reliability.
- Price: While price is an important factor, it should not be the sole criterion for decision-making. Balance the cost with the quality and features offered by the branch connector.
Types of MC4 Branch Connectors:
- Y-Branched Connectors: Used when a single solar panel needs to be connected to two separate devices or circuits.
- T-Branched Connectors: Used to connect three separate devices or circuits, commonly seen in larger solar panel installations.
- Parallel Connectors: Combine the DC output from multiple solar panels into a single connection point, typically required for larger systems.
- Series Connectors: Used to connect multiple solar panels in a series, allowing for increased voltage output.
Expert Tips:
- Consider future expansion plans: If you anticipate expanding your solar system in the future, choose a branch connector that allows for easy addition of extra panels or circuits.
- Select the appropriate cable size: Ensure that the cable size matches the branch connector’s recommended specifications to prevent power loss and overheating.
- Weatherproofing is crucial: As MC4 branch connectors are exposed to outdoor elements, prioritize connectors that are weatherproof and suitable for your climate.
- Quality matters: Investing in high-quality connectors might be slightly more expensive initially but can save headaches in the long run by providing durability and reliability.
- Consult with professionals: If you are uncertain about the right MC4 branch connector for your solar system, it is always advisable to seek advice from professionals or experts in the field.
FAQs
Q: How do MC4 branch connectors work?
A: MC4 branch connectors enable the electrical connection and branching of solar panels within a solar system. They provide a secure and weatherproof connection that allows the flow of current between panels, circuits, or devices.
Q: Can I use any MC4 branch connector with my solar panels?
A: It is important to ensure that the MC4 branch connector you choose is compatible with the MC4 connectors on your solar panels. Check the specifications and consult the manufacturer’s recommendations to ensure compatibility.
Q: Are MC4 branch connectors easy to install?
A: MC4 branch connectors are generally designed to be user-friendly and easy to install. However, it is still recommended to follow the manufacturer’s instructions carefully for a successful and hassle-free installation process.
Q: Can MC4 branch connectors be used for both residential and commercial solar systems?
A: Yes, MC4 branch connectors are suitable for both residential and commercial solar systems. Consider the specific requirements of your installation and choose a branch connector accordingly.
Q: Do MC4 branch connectors require maintenance?
A: MC4 branch connectors are relatively maintenance-free. However, it is recommended to inspect the connectors periodically for signs of dust, debris, or any loose connections. Clean or tighten as necessary to ensure optimal performance.
Q: Can I install MC4 branch connectors myself, or do I need a professional?
A: MC4 branch connectors can generally be installed by individuals with some basic knowledge of electrical connections. If you are unsure or feel uncomfortable, it is best to consult a professional to ensure a safe and proper installation.
Q: What is the difference between parallel and series MC4 branch connectors?
A: Parallel branch connectors combine the DC output from multiple solar panels into a single connection point, ideal for larger systems. Series branch connectors, on the other hand, connect multiple solar panels in a series to increase the overall voltage output.
Q: Can I use MC4 branch connectors for other applications apart from solar systems?
A: While MC4 branch connectors are primarily designed for use in solar systems, they can also be suitable for some low-voltage DC applications where watertight and weather-resistant connections are required.
Q: Will using MC4 branch connectors affect the warranty of my solar panels?
A: Connecting solar panels with MC4 branch connectors should not affect the warranty of the panels, as long as the installation is performed according to the manufacturer’s guidelines and does not involve any unauthorized modifications.
Q: Are MC4 branch connectors reusable?
A: MC4 branch connectors are designed for multiple connections and disconnections. However, repeated installations and removals can weaken the connectors over time, potentially impacting their reliability.
