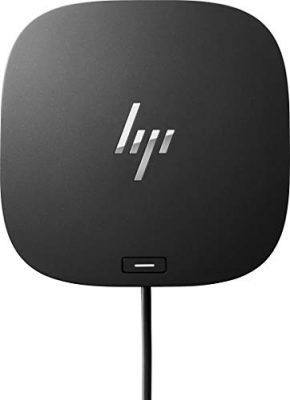

To use an HP docking station for laptop, first connect the dock to AC power, then connect it to your laptop using the included USB-C cable, and finally install the necessary drivers from HP support. This process ensures your external monitors, USB devices, and laptop charging all work correctly through the hp docking station for laptop how to use setup.
Before you start: check HP docking station for laptop how to use compatibility
Verify your laptop runs Windows 10 version 1809 or higher and has a USB Type-C port, as these are required for optimal performance with most HP docking stations. Optimal performance also listed for Windows 8 or Windows 7 on some models. Locate the dock model number on the bottom of the docking station, you will need it to find the correct drivers and confirm your specific laptop model is supported.
Connect the docking station to AC power first
This is the mandatory first step. Connect the power cord to the dock's power-in connector, then plug the other end into an AC outlet. The dock must stay connected to AC power for full functionality of all its ports and connectors.

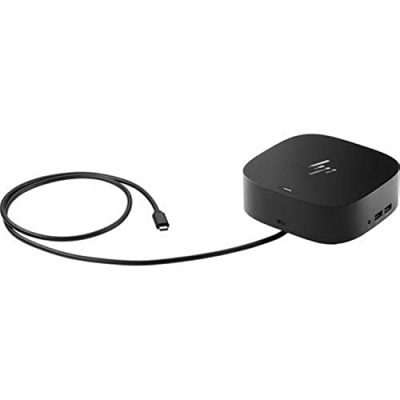

Connect the dock to your laptop with the USB-C cable
Connect the dock's USB Type-C cable to a USB Type-C port on your computer. If your computer does not support power over USB-C or requires more than 100 W, use your laptop's own AC adapter to power or charge the computer instead. If the computer does not support power over USB-C or needs more than 100 W, the computer's own AC adapter must be used. For computers without a USB-C port, some HP guides document using a USB-Type-C-to-USB adapter: connect the dock cable to the USB-C end of the adapter, then connect the USB end to a USB port on the computer.
Install the docking station drivers from HP support
- Go to hp.com/support and select your country or region.
- Open Software and Drivers, enter the dock model number, and select Find my product.
- Download the latest drivers for your specific docking station.
- With the dock connected to your laptop and Windows running with an internet connection, open File Explorer and select HP USB-C Dock if the flash drive does not open automatically.
- Double-click HP Elite USB-C Docking Station Installer and follow the prompts to complete installation.
Connect your monitors and USB devices
Full port functionality requires the dock to stay on AC power. To use all dock features, the computer and monitor must support Thunderbolt, USB SuperSpeed, and DisplayPort 1.3. Device support varies by model, but HP docks support multiple USB SuperSpeed ports and DisplayPort-compatible ports, even when the attached computer or display does not support the highest-speed standards. USB 2.0 devices and DisplayPort 1.2 devices still work with some ports on most models. Laptop Docking Stations like these expand your laptop's connectivity without requiring you to plug and unplug multiple cables each time you sit down at your desk.
Frequently Asked Questions
Can I use an HP docking station with a laptop that has a USB-A port instead of USB-C?
Some HP docking stations include a USB-Type-C-to-USB adapter that allows connection to a standard USB-A port, though full functionality such as video output and charging may be limited compared to a USB-C connection.
Do I need to install drivers every time I connect the dock?
No. Drivers install once from HP support, and the dock will be recognized automatically on subsequent connections as long as the drivers remain current.
Why is my external monitor not displaying after connecting the dock?
Ensure the dock is connected to AC power, your monitor supports DisplayPort or USB SuperSpeed (depending on the dock model), and you have installed the latest dock drivers from HP support. Some features require the computer and monitor to support Thunderbolt, USB SuperSpeed, and DisplayPort 1.3.
Can I charge my laptop through the HP docking station?
Yes, if your laptop supports power delivery over USB-C. If your laptop requires more than 100 W, you must use your laptop's own AC adapter to charge it while docked.
Will the docking station work with a Mac or Chromebook?
HP's official guidance covers Windows laptops only. The documented setup requires Windows 10 version 1809 or higher, and the drivers are provided for Windows systems. Compatibility with other operating systems is not guaranteed by HP.
