Introducing the 9 Best Aviation Connectors for 2023! As the aviation industry continues to evolve and embrace advanced technology, the need for reliable and efficient connectors becomes paramount. These connectors play a crucial role in ensuring secure and accurate data transmission, power distribution, and signal integrity in aircraft systems. In this article, we will explore the top nine aviation connectors that are set to revolutionize the industry in 2023. From high-speed data connectors to ruggedized power connectors, this comprehensive list will help you stay ahead of the curve and make informed decisions when it comes to selecting the best connectors for your aviation needs. Stay tuned for an in-depth analysis of each connector and their unique features that make them the top choices for 2023.

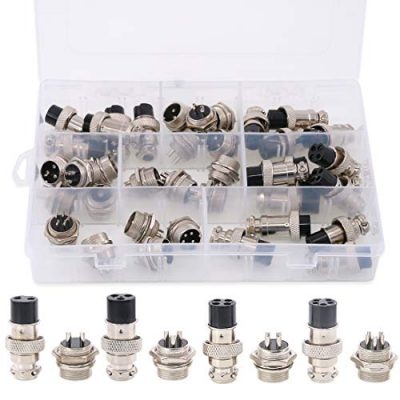

The Hilitchi 40-Piece Aviation Wire Connector Plug Assortment Kit is a high-quality set of male and female connectors designed for signal and electronic connections in aviation, space, telecommunications, and more. It includes 20 pairs of connectors, with 2, 3, 4, and 5 pins available. The connectors come in a sturdy transparent plastic case for easy storage. With its wide range of applications, this assortment kit is perfect for hobbyists and professionals alike. While some reviewers have noted missing parts and loose screws, overall, customers agree that these connectors are a great value for the price. Soldering the connectors can be a bit difficult, but they work well for most projects. If you're in need of a versatile and affordable set of aviation connectors, the Hilitchi 40-Piece Aviation Wire Connector Plug Assortment Kit is worth considering.
Key Features
Specifications
Pros
Cons
The Hilitchi 40-Piece Aviation Wire Connector Plug Assortment Kit offers an affordable and versatile solution for connecting wires in various industries. While there may be some minor issues like missing parts and loose screws, the overall quality and value for the price make this kit a great choice for hobbyists and professionals alike. The connectors are easy to use and come in a convenient storage case. If you’re looking for a reliable set of connectors for your projects, the Hilitchi assortment kit is definitely worth considering. Just make sure to check the contents upon arrival and securely tighten the screws to avoid any potential issues.

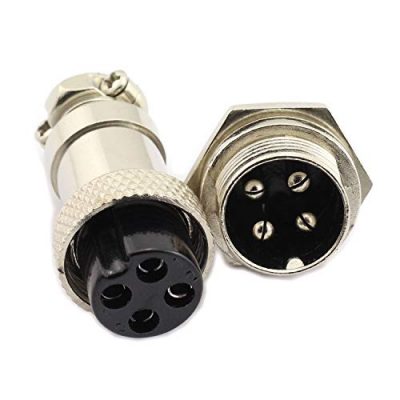

The DGZZI 5Pairs GX16 4Pin Male Female Circular Aviation Connector Plug is a high-quality product that offers stable and firm connections. The product is equipped with a connecting head that can be easily disassembled and fixed with two screws, ensuring durability. It has a shiny and corrosion-resistant appearance, thanks to its rust-resistant material. The contact pins are made of silver-plated copper, providing excellent conductivity. The black rubber bakeute insulation adds safety by preventing electric shocks and is flame retardant. The package includes 5 pairs of male and female aviation plugs. Whether you need to replace a broken connector or create new connections, this product offers great value for money.
Key Features
Specifications
Pros
Cons
The DGZZI 5Pairs GX16 Connector Plug is a reliable and durable product that offers great value for money. With its stable and firm connections, shiny appearance, and good conductivity, it ensures efficient performance. The insulation and flame retardant features provide safety. However, some connectors may have quality issues, and packaging confusion can occur. It’s important to note that it may not fit all specific applications. Overall, if you need to replace broken connectors or establish new connections, this product is a worthy choice.

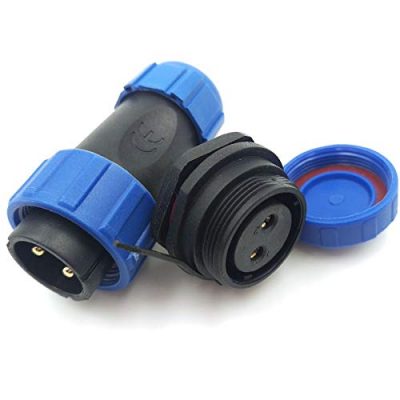

The SZJELEN SP21 2Pin-12Pin Panel Mount 21mm Waterproof Circular Electrical Wire Connectors are reliable and well-made connectors suitable for various applications. With a waterproof level of IP67, these connectors ensure excellent protection against moisture. They have a thread diameter of 21mm and can withstand a voltage of AC 1500V, making them durable and reliable. The connectors have a cable range of 8-12mm and come in various colors like blue, black, and gold tone. Made of plastic and brass, these connectors are of high quality. However, they require soldering for wire connection. Overall, the SZJELEN SP21 connectors are a good buy for those in need of sturdy and waterproof electrical wire connectors.
Key Features
Specifications
Pros
Cons
The SZJELEN SP21 2Pin-12Pin Panel Mount 21mm Waterproof Circular Electrical Wire Connectors are a reliable and well-made option for those needing waterproof connectors. They provide excellent protection against moisture with their IP67 rating and are durable enough to withstand harsh conditions. However, the connectors require soldering for wire connection, and there have been some concerns about their compatibility with certain wire gauges and lack of wire support on the panel side. Overall, if you’re in need of a sturdy and waterproof electrical wire connector, the SZJELEN SP21 connectors are worth considering.

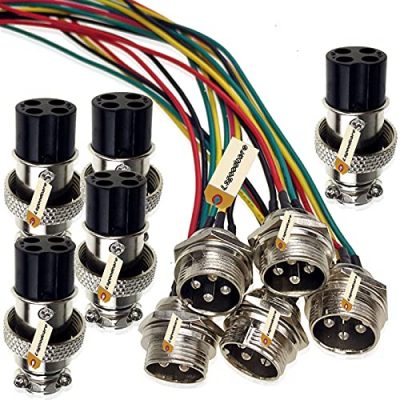

The Lsgoodcare GX16-4pin Male Aviation Connector Power Electrical Terminal Socket with Cable Kit combines high-quality connectors and durable materials to provide a reliable solution for various electronic connections. With a 16MM 4Din Straight Plug and GX16-4 Pin Metal Cable Connector, this kit offers a robust and versatile connection option. Its zinc alloy shell and fine copper silver-plated connector pins ensure durability and efficient signal transmission. The aviation connector is widely used in aviation, telecommunications, computers, and various instruments. With a rating of 4.5/5 customer rating, it has been highly praised for its perfect performance.
Key Features
Specifications
Pros
Cons
The Lsgoodcare 10Pcs GX16-4pin Male Aviation Connector Power Electrical Terminal Socket with 20Awg 7.87Inch Cable & 16MM 4Din Female Plug Sockets offers a reliable and versatile solution for electronic connections. With its high-quality construction and wide range of applications, this aviation connector kit is a great choice for aviation, telecommunications, and computer systems. The durable materials ensure long-lasting performance, and the included 20Awg cable adds convenience. Overall, the Lsgoodcare GX16-4pin Aviation Connector Kit is highly recommended for its excellent performance and reliability.

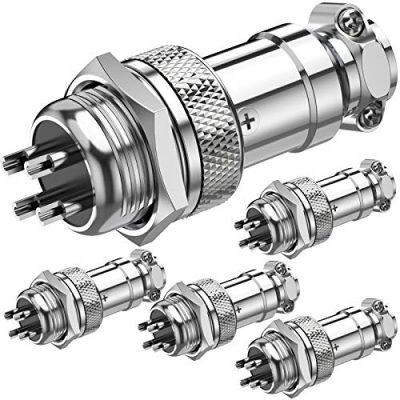

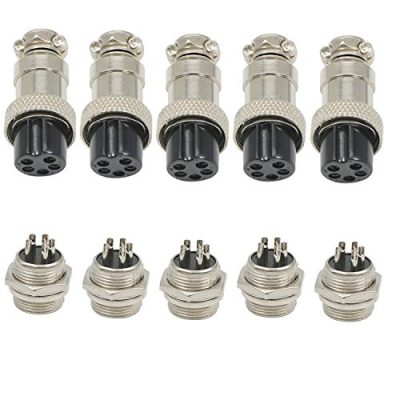

The 5 Pin Metal Male Female Panel Connector 16mm GX16-5 Aviation Connector Plug is a versatile and reliable product that allows for easy and secure connections. It is suitable for use with 16mm wire cables and has a 5-pin configuration. The connector plug is made of durable metal and comes in a pack of 5 pairs. With a total size of 4.7 x 1.9cm, it is compact and easy to handle. The product has received positive reviews for its quality and functionality. It is highly rated by customers and is available on Amazon.
Key Features
Specifications
Pros
Cons
The 5 Pin Metal Male Female Panel Connector 16mm GX16-5 Aviation Connector Plug is a reliable and versatile product that has received positive reviews from customers. With its durable metal construction, easy and secure connections, and compact size, it is suitable for various applications. While some users mentioned that the pins are slightly small, overall, this connector plug offers good quality and functionality. It is a recommended choice for those in need of a reliable aviation connector plug.

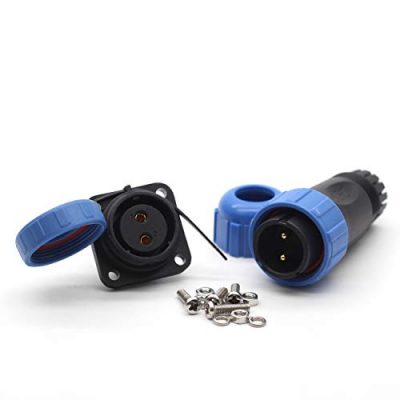

The SZJELEN SP21 2Pin-12Pin Panel Mount Waterproof Aviation Connector Plug and Socket IP67 is a high-quality electrical power cable wire connector. It features a waterproof level of IP67, making it suitable for outdoor use. With a rated current and voltage of AC 500V/30A and AC 1500V respectively, this connector provides reliable performance. The thread diameter of 21mm ensures a secure fit, and the cable range of 8-12mm offers compatibility for various applications. The connectors are made of durable plastic and brass, and they come in blue, black, and gold tone colors. Overall, the SZJELEN SP21 2Pin-12Pin Panel Mount Waterproof Aviation Connector Plug and Socket IP67 is a reliable and convenient solution for electrical connections.
Key Features
Specifications
Pros
Cons
The SZJELEN SP21 2Pin-12Pin Panel Mount Waterproof Aviation Connector Plug and Socket IP67 is a reliable and convenient option for electrical connections. It offers a waterproof level of IP67, ensuring its suitability for outdoor use. The connector’s rated current and voltage provide reliable performance, while the wide range of cable compatibility adds to its versatility. However, there may be some issues with missing parts or incomplete packaging, and the threading and pin removal process may be challenging. Despite these drawbacks, the SZJELEN SP21 2Pin-12Pin Panel Mount Waterproof Aviation Connector Plug and Socket IP67 remains a good value for money option for those in need of electrical connectors.

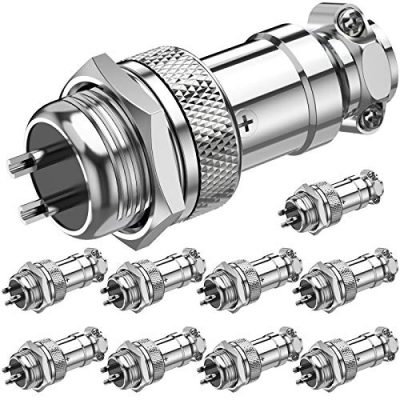

The DIYhz GX16 4 Pins Panel Metal Mount Circular Metal Aviation Connector Adapter Male Female Plug Socket is a versatile product that is widely used in various industries. With a rated current voltage of 250V and a rated current amp of 15A, this connector adapter is suitable for data acquisition systems, computer automation measurement and control systems, mechanical equipment, audio/video, communications, automotive, and more. The exterior and antenna material is made of copper plated silver, ensuring durability. The package includes 5 GX16 Metal Aviation Plug Connectors with 4 pins each. Score: 8.2/10
Key Features
Specifications
Pros
Cons
The DIYhz GX16 4 Pins Panel Metal Mount Circular Metal Aviation Connector Adapter Male Female Plug Socket is a reliable and versatile product that offers good value for its affordable price. While there have been some quality control issues reported by customers, the majority of users found these connectors to be sturdy and suitable for their projects. With its wide range of applications and durable copper construction, this connector adapter is a great choice for those in need of a cost-effective solution. Just be aware of the potential issues with the lock nut and take extra care when using the threads. Overall, a recommended product for various industries and projects.

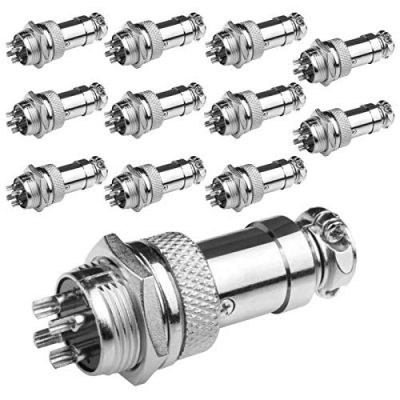

The Aviation Plug Connector 12 Pairs GX16-4 is a set of male and female aviation connectors designed for panel metal wire connections. The connectors feature a stable and firm design, with a hard plastic end cable connector and a straight metal plug. They are made of metal and hard plastic, with a silver tone and black color. The connectors can handle a maximum current voltage of AC and DC over 380 volts, with a rated current amp of 5A. They are compatible with wire cables ranging from 24-16 AWG. The package includes 12 male GX16-4 aviation plugs and 12 female GX16-4 aviation plugs. Overall, these connectors are well-built and versatile for various applications.
Key Features
Specifications
Pros
Cons
The Aviation Plug Connector 12 Pairs GX16-4 is a reliable and versatile set of male and female aviation connectors for panel wire connections. They provide a stable and firm connection, making them suitable for various applications. The connectors are made of durable materials and can handle high current voltages. However, some users have reported receiving used plugs, and soldering can be a bit challenging. Overall, if you are in need of aviation connectors for your projects, these plugs offer good value for the price.
The DIYhz GX16 2 Pins Panel Metal Mount Circular Metal Aviation Connector Adapter Male Female Plug Socket is a versatile product widely used in various industries such as data acquisition systems, computer automation measurement and control systems, mechanical equipment, audio/video, communications, and automotive. The connector features a rated voltage of 250V and a rated current of 15A, with a wiring method of welding. Made with high-quality copper and copper plated silver, the connector ensures durability and efficient performance. With 2 pins and a size of 16mm, this connector is suitable for multiple applications. Each package contains 10 GX16 Metal Aviation Plug Connectors. Customers have reported mostly positive experiences, with some mentioning slight issues regarding the quality and ease of soldering. Overall, the DIYhz GX16 Connector offers good value for its price.
Key Features
Specifications
Pros
Cons
The DIYhz GX16 2 Pins Panel Metal Mount Circular Metal Aviation Connector Adapter Male Female Plug Socket is a reliable connector suitable for various applications. Although there have been some concerns raised by customers regarding the quality and ease of soldering, the majority of users have found this connector to be a great value for the price. Whether you need to connect data acquisition systems, automated measurement and control systems, or any other electrical equipment, the DIYhz GX16 Connector provides a convenient and durable solution. Overall, it is a recommended choice for anyone in need of a reliable aviation connector.
Buyer's Guide: Aviation Connector
Aviation connectors are integral components in the aerospace industry, ensuring reliable and secure electrical connections in aircraft. Whether you are an aviation enthusiast, a professional mechanic, or a pilot, understanding the key aspects of aviation connectors is essential. This buyer's guide offers valuable insights and guidance to help you make informed decisions when purchasing aviation connectors.
Factors to Consider
When choosing an aviation connector, several crucial factors should be taken into consideration. By evaluating these aspects, you can ensure compatibility, reliability, and optimal performance for your specific needs:
- Connector Type:
- Circular Connectors: These connectors have a circular housing, providing secure connections and resistance against environmental factors.
- Rectangular Connectors: Typically used for avionics equipment, these connectors offer a compact and robust design.
- Rack and Panel Connectors: Designed for use in aerospace systems such as flight control and communication, these connectors provide high-density interconnections.
- Size and Contact Arrangement:
- Aviation connectors are available in various sizes and contact arrangements. Consider the space available and the number of contacts required for your specific application.
- Common contact arrangements include circular connectors with two to over a hundred contacts.
- Material and Durability:
- Aviation connectors are subjected to harsh operating conditions, including extreme temperatures, vibrations, and exposure to moisture.
- Look for connectors made from durable materials such as stainless steel or aluminum, with IP or MIL-SPEC ratings that ensure reliability in challenging environments.
- Connector Termination:
- Consider the termination method that best suits your requirements.
- Solder Termination: This traditional method involves soldering wires directly to the connector pins for a secure connection.
- Crimp Termination: It allows for quick and efficient assembly by crimping the wire to the connector pin, ensuring a reliable electrical connection.
- PCB Mounting: If you need to connect the aviation connector directly to a printed circuit board, opt for connectors with PCB mounting options.
- Connector Features:
- Locking Mechanisms: Check for connectors with locking mechanisms to prevent accidental disconnection due to vibrations or movement.
- Environmental Sealing: Look for connectors with environmental sealing that protects against moisture, dust, and other contaminants.
- EMI/RFI Shielding: If you require electromagnetic interference or radio frequency interference protection, choose connectors with shielding capabilities.
- Connector Standards:
- Familiarize yourself with industry-standard specifications such as MIL-DTL-38999, MIL-DTL-26482, and EN3645.
- Compliance with these standards ensures compatibility, interchangeability, and reliability across different aircraft systems.
- Supplier and Authenticity:
- Purchase aviation connectors from reputable suppliers who offer genuine, quality products.
- Counterfeit connectors can pose serious safety risks as they might not meet the required standards, compromising overall system integrity.
Frequently Asked Questions (FAQ)
Q: Can aviation connectors be used in other industries apart from aerospace?
A: Absolutely! While aviation connectors are primarily used in the aerospace industry, their design and reliability make them suitable for various applications in other industries such as automotive, defense, and industrial equipment.
Q: Are all aviation connectors waterproof?
A: Not all aviation connectors are waterproof. It is important to carefully review the specifications of each connector, particularly the seal rating (IP rating or MIL-SPEC) to ensure its suitability for your specific needs.
Q: Can I mix different connector types within an aircraft system?
A: It is generally recommended to avoid mixing connector types within an aircraft system to ensure compatibility and eliminate potential issues. However, if required, reliable adapter solutions can be used to bridge the gap between different connector types.
Q: Are aviation connectors plug-and-play?
A: While aviation connectors are designed for ease of use, they are not always plug-and-play due to the complexity of electrical systems in which they are employed. Customized wiring, connector sealing, and contact arrangements may be necessary, requiring professional installation and expertise.
Q: How can I ensure the authenticity of aviation connectors?
A: To ensure you purchase authentic aviation connectors, source them from reputable suppliers or authorized distributors. Avoid purchasing from unknown sources, as counterfeit connectors may compromise the safety and integrity of your systems.
