If you’re looking to pin a Deutsch connector, you’ve come to the right place! A Deutsch connector is a type of electrical connector commonly used in the automotive and industrial industries. It allows for the connection and disconnection of wires in a secure and reliable manner.

Pinning a Deutsch connector may seem like a daunting task, but with the right knowledge and tools, it can be a straightforward process. In this article, we will guide you through the steps to effectively pin a Deutsch connector, ensuring a proper and secure connection.

Whether you’re a DIY enthusiast or a professional working with electrical systems, mastering the art of pinning a Deutsch connector is a valuable skill. So, let’s dive in and explore the process together!

Inside This Article

  1. Understanding Deutsch Connectors
  2. Tools and Materials Needed
  3. How To Pin Deutsch Connector
  4. Conclusion
  5. FAQs

Understanding Deutsch Connectors

Deutsch connectors are widely used in the automotive and industrial sectors for their reliability and durability. These connectors are known for their ability to withstand harsh conditions such as extreme temperatures, moisture, and vibrations. Understanding the basics of Deutsch connectors is essential if you want to effectively work with them.

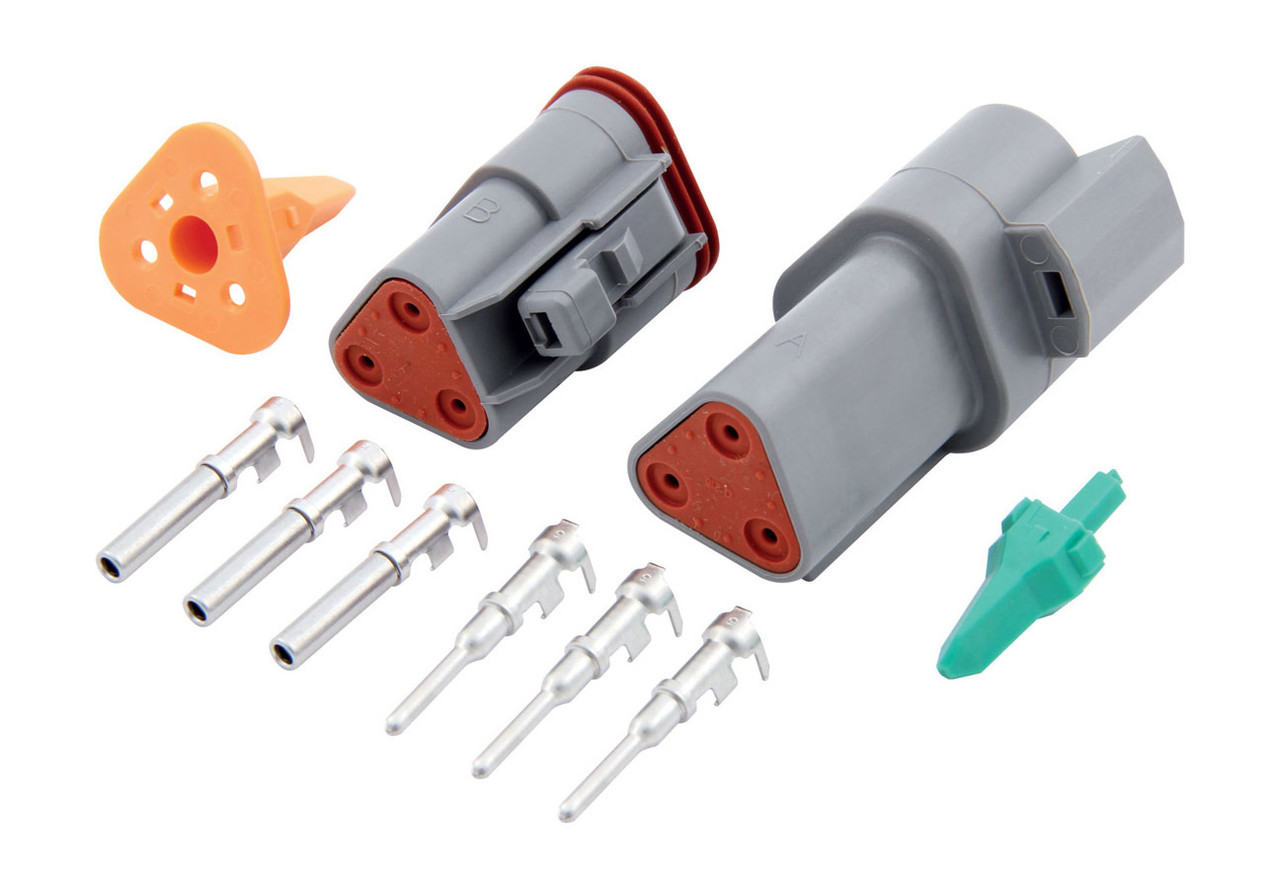

Deutsch connectors are circular, multi-pin connectors that offer secure and efficient electrical connections. They consist of three main components: the connector body or housing, the terminal pins, and the mating wedgelocks. The connector body serves as the outer housing that holds all the components together and provides protection against environmental factors.

The terminal pins are the contact points that carry the electrical current. These pins are made of high-quality materials that ensure reliable conductivity and resistance to corrosion. They are inserted into the connector body and secured using the mating wedgelocks, which provide additional reinforcement and prevent the pins from coming loose.

One key feature of Deutsch connectors is their distinct rectangular or D-shaped design. This shape allows for easy identification and prevents incorrect mating with incompatible connectors. Each Deutsch connector is assigned a specific size and configuration, ensuring that only compatible connectors can be connected to each other.

There are different types of Deutsch connectors available, each designed for specific applications. Some common types include DT Series connectors, DTM Series connectors, and DTP Series connectors. These connectors vary in terms of the number of pins, size, and current-carrying capacity, allowing you to choose the right connector for your specific needs.

Understanding the pinout configuration of Deutsch connectors is also crucial. Most Deutsch connectors have a specific pinout pattern that determines the electrical connections. It is important to refer to the manufacturer’s documentation or datasheet to ensure proper wiring and connection of the pins.

In addition to their robustness and reliability, Deutsch connectors also offer versatility and ease of use. They can be easily connected and disconnected, making them ideal for applications that require frequent maintenance or component replacement. The connectors are also designed to provide a secure and tight fit, minimizing the risk of accidental disconnection.

Overall, understanding Deutsch connectors is essential for anyone working with electrical connections in the automotive and industrial sectors. Their durability, reliability, and ease of use make them a popular choice for various applications. Whether you are a technician, engineer, or hobbyist, having a good understanding of Deutsch connectors will help you make the most of their capabilities and ensure efficient and reliable electrical connections.

Tools and Materials Needed

In order to successfully pin a Deutsch connector, you will need a few essential tools and materials. Having these items on hand will ensure that you are prepared and equipped to handle the task efficiently. Here are the tools and materials you will need:

1. Deutsch Connector Kit: A Deutsch connector kit contains all the necessary components for pinning the connector. It typically includes pins, sockets, seals, and connectors of various sizes.

2. Wire Crimping Tool: A wire crimping tool is essential for securely attaching the wires to the pins or sockets. It allows you to create a strong and reliable connection between the wire and the pin.

3. Wire Strippers: Wire strippers are used to remove the insulation from the wire, exposing the conductive metal. This is necessary before crimping the wire to the pin.

4. Heat Gun or Soldering Iron: Depending on the type of Deutsch connector you are working with, you may need a heat gun or soldering iron to provide heat for shrinking the heat shrink tubing or soldering the wire to the pin.

5. Heat Shrink Tubing: Heat shrink tubing is used to cover and protect the connection between the wire and the pin. It provides insulation and keeps the connection secure.

6. Electrical Tape: Electrical tape can be used as an additional layer of protection to secure and insulate the connection. It helps to prevent any potential damage to the wires.

7. Wire Cutter: A wire cutter is necessary for cutting the wires to the required length. It ensures that the wires fit properly into the Deutsch connector.

8. Multimeter: A multimeter is a handy tool for testing the continuity and voltage of the connections. It helps to verify that the pins are properly crimped and the wires are securely connected.

Make sure to have all these tools and materials readily available before you begin pinning the Deutsch connector. This will minimize any interruptions or delays during the process, allowing you to successfully complete the task with ease.

How To Pin Deutsch Connector

Deutsch connectors are commonly used in automotive and industrial applications, providing a reliable and secure connection for electrical circuits. If you need to pin a Deutsch connector, follow these step-by-step instructions to ensure a successful installation.

Step 1: Gather the Tools and Materials

Before you start pinning the Deutsch connector, make sure you have the necessary tools and materials. You will need:

  • A Deutsch connector kit
  • Wire strippers
  • Needle-nose pliers
  • Heat shrink tubing
  • Heat gun or lighter
  • Soldering iron (optional)

Step 2: Prepare the Wires

Start by preparing the wires that will be inserted into the Deutsch connector. Strip about 1/4 inch of insulation from the end of each wire using the wire strippers. Make sure you have the correct gauge of wire for the specific Deutsch connector you are using.

Step 3: Insert the Pins

Take one of the Deutsch connector pins from the kit and insert it into the appropriate cavity in the connector housing. The pins are usually labeled or color-coded for easy identification. Use the needle-nose pliers to press the pin firmly into place, ensuring it is fully seated.

Step 4: Crimp the Pins

Using the appropriate crimping tool from the Deutsch connector kit, crimp the pin onto the stripped end of the wire. Apply steady pressure to ensure a secure connection. If you have a soldering iron, you can also solder the wire to the pin for added strength and durability.

Step 5: Insulate the Connection

To protect the connection from moisture, vibration, and other potential hazards, slide a piece of heat shrink tubing over the crimped area. Heat the tubing with a heat gun or lighter to shrink it tightly around the wire and pin, creating a waterproof seal.

Step 6: Repeat for all Wires

Repeat steps 3 to 5 for each wire that needs to be connected to the Deutsch connector. Make sure to insert the pins into the correct cavities and follow proper crimping and insulation procedures for each wire.

Step 7: Test the Connection

Once all the wires are pinned and secured, it’s important to test the connection for continuity and functionality. Use a multimeter or test light to check that there is a proper connection between the pins and wires.

Step 8: Reassemble the Connector

If you disassembled the Deutsch connector housing during the pinning process, carefully reassemble it, ensuring that all the pins and wires are properly seated and aligned. Use the needle-nose pliers to secure the connector housing if necessary.

Step 9: Secure the Connector

Use cable ties or tape to secure the Deutsch connector to the desired location, preventing it from coming loose or getting damaged due to vibrations or movement.

By following these steps, you can successfully pin a Deutsch connector, making reliable and secure electrical connections for your automotive or industrial applications.

Remember to always refer to the manufacturer’s instructions and guidelines specific to your Deutsch connector kit for detailed information and any additional instructions.


In conclusion, understanding how to pin a Deutsch connector is an essential skill for anyone in the field of electrical connections. By following the step-by-step process and paying attention to the color coding and keying, you can successfully connect wires and ensure a secure and reliable connection. Remember to use the appropriate tools and techniques to crimp and secure the pins properly. Whether you are working on automotive, industrial, or marine applications, knowing how to pin Deutsch connectors will save you time, prevent wiring errors, and ensure optimal functionality of your electrical systems. So, don’t hesitate to dive into the world of Deutsch connectors and start mastering this valuable skill today!


1. What is a Deutsch connector?

A Deutsch connector is a type of electrical connector commonly used in heavy-duty applications, such as automotive, industrial, and commercial machinery. It is known for its durability, reliability, and ability to withstand harsh environmental conditions. These connectors have multiple pins or contacts that securely connect and transmit electrical signals between two devices or components.

2. How do I pin a Deutsch connector?

Pinning a Deutsch connector involves the process of inserting individual pins or terminals into the connector housing to establish electrical connections. To pin a Deutsch connector, you will need the appropriate crimping tool, a set of Deutsch terminals, and the connector housing. First, strip and prepare the wires according to the specifications of the terminal size and gauge. Then, insert the prepared wire into the terminal and ensure a secure connection by using the crimping tool. Finally, insert the pinned terminal into the appropriate slot in the connector housing, making sure it locks into place.

3. What are the benefits of using Deutsch connectors?

Deutsch connectors offer several benefits in various industries and applications. These include:

– Durability: Deutsch connectors are designed to withstand extreme temperatures, moisture, vibrations, and other harsh conditions, making them highly reliable in demanding environments.

– Secure Connections: The connectors provide a secure and tight connection, minimizing the risk of loose or intermittent connections that can disrupt electrical signals.

– Easy Installation and Maintenance: Deutsch connectors are designed for easy installation and maintenance. They often feature color-coded or numbered contacts, making it easier to identify and connect the wires correctly.

– Versatility: These connectors are available in a wide range of sizes, configurations, and pin arrangements, allowing for flexibility in different electrical systems and applications.

4. Can I use a Deutsch connector for automotive applications?

Yes, Deutsch connectors are commonly used in automotive applications. They are particularly suitable for heavy-duty vehicles, such as trucks, construction equipment, and agricultural machinery, where high reliability and resistance to environmental conditions are essential. Deutsch connectors are frequently used in wiring harnesses, sensor connections, and electrical components within the vehicle.

5. Where can I purchase Deutsch connectors and related accessories?

Deutsch connectors and related accessories can be purchased from various sources, including online retailers, specialized electronic component stores, and industrial supply companies. It is important to ensure that you are purchasing genuine Deutsch connectors from authorized distributors to guarantee their quality and authenticity.
