The MC4 connector is a widely used electrical connector in the solar industry. It is specifically designed for connecting solar panels and is known for its durability and efficiency. The MC4 connector consists of a male and female plug with specially designed pins and sockets that ensure a secure and reliable connection. These connectors are used to facilitate the flow of DC power from the solar panels to various components of a solar power system, such as inverters and charge controllers. With its standardized design and ability to handle high currents and voltages, the MC4 connector has become the industry standard for solar installations. In this article, we will explore in detail what an MC4 connector is, how it works, its benefits, and common uses. Whether you are a solar enthusiast or a professional in the solar industry, understanding the importance and functionality of the MC4 connector is essential.
Inside This Article
Overview of MC4 Connectors
MC4 connectors are widely used in the solar industry for PV (photovoltaic) systems. They are a type of electrical connector specifically designed for connecting solar panels together and for connecting panels to the rest of the solar power system.
MC4 stands for “Multi-Contact 4”, referring to the four contact points found in these connectors. These connectors have become the standard in the solar industry due to their reliability, durability, and ease of installation. They are designed to withstand the harsh outdoor conditions commonly encountered in solar applications.

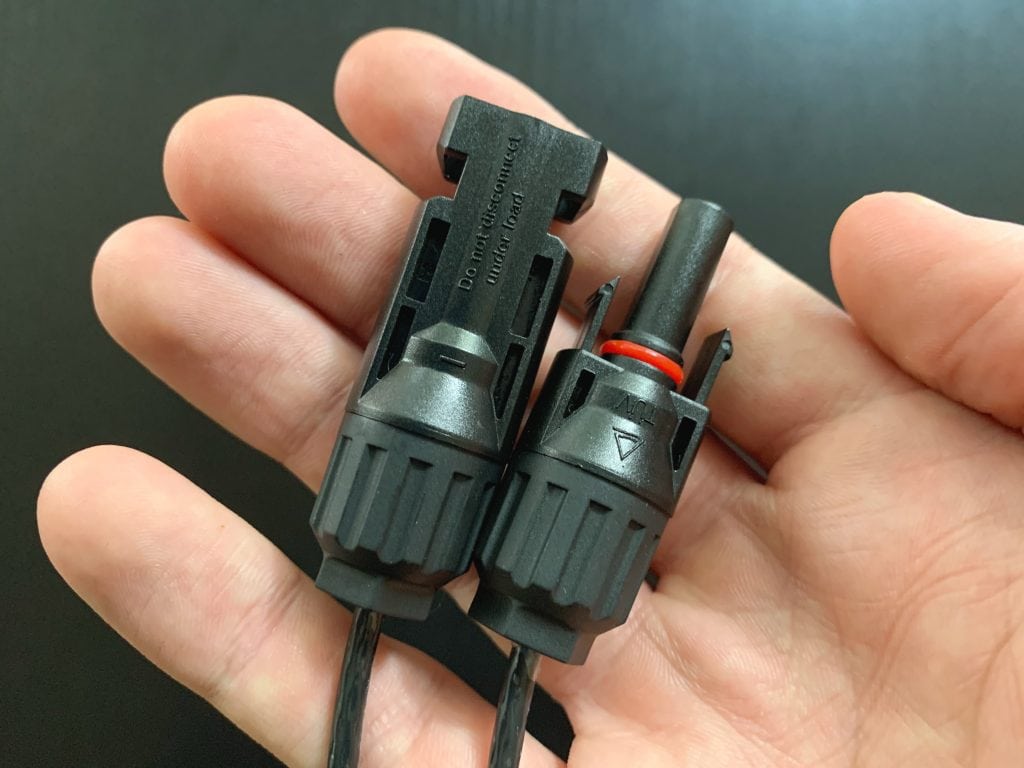

MC4 connectors consist of a male and female connector pair, known as MC4 plugs, which are easily mated together to create a secure and waterproof connection. The connectors have a snap-lock mechanism that ensures a tight and secure connection, preventing any accidental disconnection or water penetration.
One notable feature of MC4 connectors is their ability to handle high currents and voltages, making them ideal for solar applications. They are capable of handling currents up to 30 Amperes and voltages up to 1000 Volts DC, making them suitable for both residential and commercial solar installations.
Moreover, MC4 connectors are designed to be easy to install. They do not require any special tools or equipment for installation, as they can be connected by hand. The connectors are color-coded to ensure proper polarity during installation, reducing the chances of wiring errors.
Due to their efficiency and versatility, MC4 connectors have become the industry standard for solar panel connections. They provide a highly reliable and efficient way to connect solar panels, enabling the efficient transfer of power from the panels to the solar power system.
Benefits of MC4 Connectors
MC4 connectors are widely recognized for their numerous benefits in the world of mobile accessories. Here are some key advantages that make MC4 connectors a popular choice:
- Reliable Connection: MC4 connectors are renowned for their robust and reliable connection. They are specifically designed to withstand harsh weather conditions, such as extreme temperatures, rain, and UV exposure. This ensures a stable and secure connection between solar panels and other devices.
- Easy Installation: One of the major benefits of MC4 connectors is their user-friendly installation process. These connectors are designed with a simple and intuitive locking mechanism, allowing for quick and hassle-free installation. This feature makes them a preferred choice for both professional installers and DIY enthusiasts.
- Efficient Power Transfer: MC4 connectors are known for their high power transfer efficiency. With low resistance and minimal power loss, these connectors maximize the power output from solar panels, ensuring optimal performance and energy generation.
- Durable and Long-lasting: MC4 connectors are built to last. Constructed from high-quality materials, such as UV-resistant polycarbonate and corrosion-resistant metals, these connectors are highly durable and resistant to wear and tear. Their long lifespan makes them a cost-effective choice for long-term solar panel installations.
- Compatibility: MC4 connectors have become the industry standard for photovoltaic systems. They are compatible with a wide range of solar panels, inverters, and extension cables, providing flexibility and convenience in system design and expansion.
- Increased Safety: MC4 connectors are equipped with features that enhance safety during installation and operation. They have built-in locking mechanisms that prevent accidental disconnection, ensuring a secure and reliable connection. Additionally, they are designed to meet stringent industry safety standards, providing peace of mind for users.
Overall, MC4 connectors offer a multitude of benefits, including reliable connections, easy installation, efficient power transfer, durability, compatibility, and enhanced safety. These advantages have made MC4 connectors the go-to choice for connecting solar panels and other devices in the mobile accessories industry.
How to Install MC4 Connectors
MC4 connectors are widely used in the solar industry to make secure and reliable connections between solar panels and other components of a solar power system. Installing MC4 connectors can be a straightforward process, but it’s essential to follow the correct steps to ensure a proper connection. In this guide, we will walk you through the process of installing MC4 connectors.
Step 1: Gather the tools and materials
Before you begin, make sure you have all the necessary tools and materials for the installation. You will need a pair of crimping pliers specifically designed for MC4 connectors, a cable stripper, and MC4 connectors suitable for your cable size.
Step 2: Prepare the cables
Start by stripping the insulation off the ends of the cables using a cable stripper. Be careful not to damage the inner strands of the cable. The length of the stripped section should be long enough to fit into the MC4 connector adequately.
Step 3: Insert the cables into the connectors
Once the cables are prepared, it’s time to insert them into the MC4 connectors. Take one end of the cable and carefully slide it into the connector until it reaches the bottom. Make sure the inner strands of the cable are fully inserted and are not sticking out.
Step 4: Crimp the connectors
Using the crimping pliers, apply pressure to the connector’s metal crimp sleeve to secure the cable in place. Be sure to crimp both the positive (+) and negative (-) connectors, making sure they are tightly and evenly crimped.
Step 5: Test the connection
After crimping the connectors, it’s crucial to test the connection to ensure it is secure and reliable. You can use a multimeter or a continuity tester to check for connectivity and measure voltage between the positive and negative terminals.
Step 6: Repeat the process
If you need to install multiple MC4 connectors, repeat the above steps for each connection. Take your time and ensure each connection is made correctly to maintain the integrity of your solar power system.
Step 7: Apply heat shrink tubing (optional)
If you want added protection and insulation for your connections, you can apply heat shrink tubing over the crimped part of the connector. Use a heat gun to carefully shrink the tubing, ensuring a tight and secure fit.
By following these steps, you can confidently and effectively install MC4 connectors in your solar power system. Proper installation will ensure reliable and efficient performance, allowing you to harness the power of the sun to its fullest extent.
After exploring the ins and outs of the MC4 connector, it is clear that this innovative piece of technology has revolutionized the world of solar power systems. With its efficient and reliable connection capabilities, the MC4 connector has become the industry standard for photovoltaic systems. Its waterproof and easy-to-use design makes it a preferred choice for installers and DIY enthusiasts alike.
By securely connecting solar panels, inverters, and other components, the MC4 connector ensures a seamless flow of energy, maximizing the efficiency and performance of the system. Its compatibility with a wide range of cables, weather resistance, and durability make it an ideal choice for various applications, whether it’s a small residential setup or a large-scale commercial installation.
With its extensive range of benefits, the MC4 connector has undoubtedly proven to be a crucial component in the field of renewable energy. As the pursuit of clean and sustainable power sources continues to grow, the MC4 connector will remain an integral part of the solar power sector, contributing to a greener and more sustainable future for all.
FAQs
1. What is an MC4 connector?
An MC4 connector is a type of electrical connector commonly used in photovoltaic (PV) systems. It was specifically designed for use in solar power systems due to its durability, reliability, and ability to withstand outdoor environmental conditions. The MC4 connector is named after the company Multi-Contact, which developed and popularized this type of connector.
2. What is the purpose of an MC4 connector?
The main purpose of an MC4 connector is to securely connect the cables of solar panels, inverters, and other components in a PV system. It enables the efficient transfer of electrical power from the solar panels to the inverter, which converts the energy from DC (direct current) to AC (alternating current) for use in homes, businesses, or the grid. The MC4 connector ensures a reliable and safe connection that can withstand the challenges of outdoor installations.
3. How does an MC4 connector work?
The MC4 connector consists of a male and female connector pair. The male connector has a metal pin surrounded by a round ring with two or three small metal tabs, while the female connector has a socket with corresponding openings for the pins and tabs. When the male and female connectors are plugged together, the pins and tabs make secure contact, ensuring a reliable electrical connection. The connectors are locked in place with a locking nut to prevent accidental disconnection.
4. Can MC4 connectors be used for other applications?
While MC4 connectors were originally designed for solar power systems, they can also be used in other low-voltage DC applications where a secure and weatherproof connection is required. This makes them suitable for a wide range of outdoor electrical installations, such as outdoor lighting, water pumps, and electric vehicle charging stations. However, it’s essential to ensure compatibility and adhere to the manufacturer’s guidelines when using MC4 connectors for non-solar applications.
5. Are MC4 connectors easy to install and disconnect?
Yes, MC4 connectors are designed to be user-friendly and easy to install. The connectors feature a plug-and-play design, where the male and female connectors simply need to be aligned and pushed together until they click into place. Disconnecting them involves pressing a release button or mechanism to unlock the connectors and then pulling them apart. This ease of installation and disconnection makes MC4 connectors popular among installers and DIY enthusiasts alike.
