When it comes to setting up a home or office network, one of the essential components is an Ethernet cable. However, not all Ethernet cables are created equal, and it’s important to understand the different types of connectors used to terminate these cables.
The connector used to terminate an Ethernet cable depends on the specific network setup and the devices being connected. The most common type of connector used is the RJ-45 connector, which is the standard connector for Ethernet cables. It allows for a secure and reliable connection, ensuring smooth data transmission between devices.
In this article, we will explore the different types of connectors used to terminate an Ethernet cable, their features, and the factors to consider when choosing the right connector for your network setup. Whether you are a home user or an IT professional, understanding these connectors will help you make informed decisions and optimize your network connectivity.
Inside This Article
- Types of Ethernet Connectors- RJ-45 Connector- M12 Connector- LC Connector- SC Connector
- Termination Techniques for Ethernet Cables
- Conclusion
- FAQs
Types of Ethernet Connectors- RJ-45 Connector- M12 Connector- LC Connector- SC Connector
Ethernet connectors are crucial components in networking, allowing devices to connect and communicate over a network. There are several types of Ethernet connectors available, each designed for specific applications and requirements. In this article, we will explore the most common types of Ethernet connectors: the RJ-45 connector, the M12 connector, the LC connector, and the SC connector.

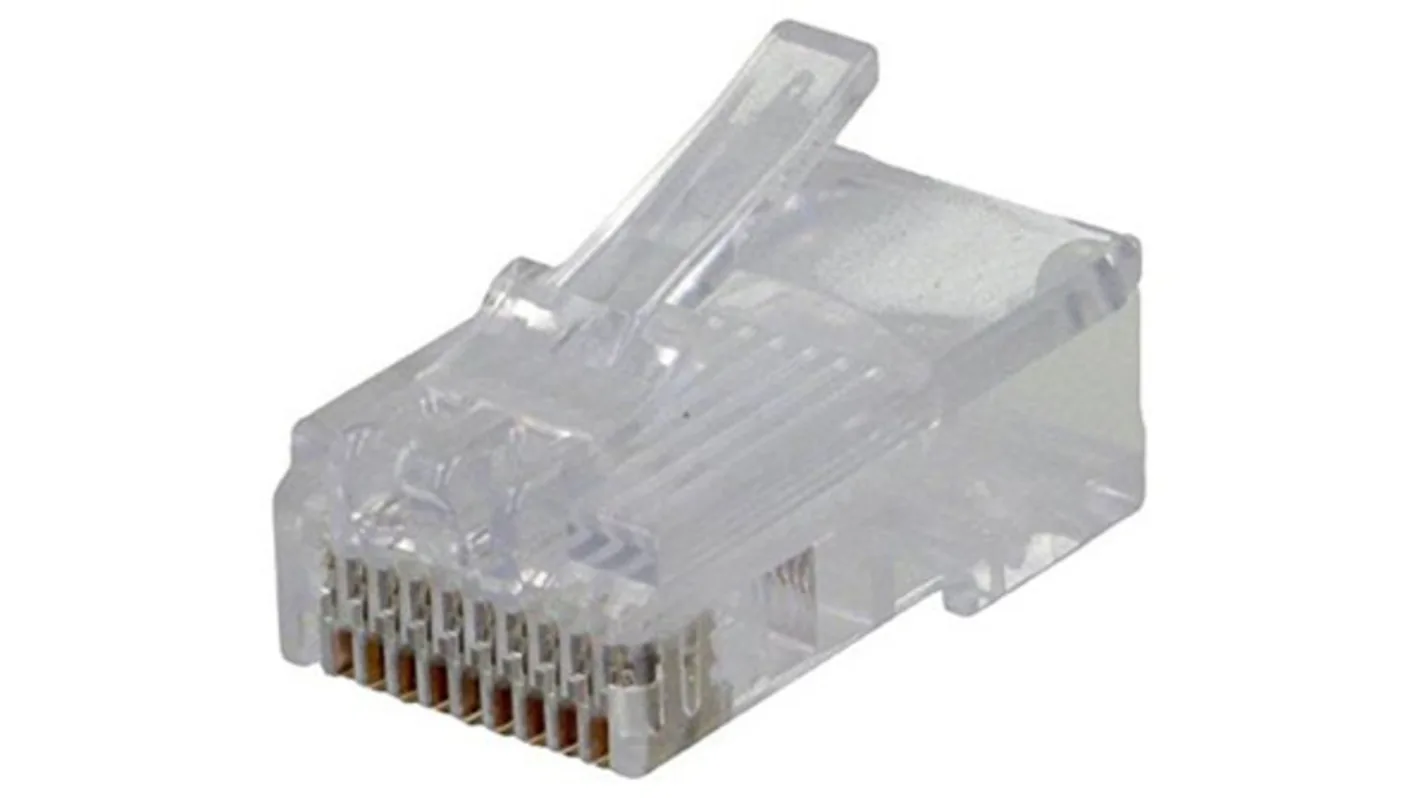

RJ-45 Connector:
The RJ-45 connector is the most widely used Ethernet connector, especially in home and office networks. It is an 8-position, 8-contact (8P8C) modular connector that is used to terminate twisted pair cables. The RJ-45 connector supports data transmission speeds up to 1 gigabit per second (Gbps) and is commonly associated with Ethernet cables, such as Cat5e and Cat6. It is known for its simplicity, reliability, and compatibility, making it the go-to choice for most Ethernet connections.
M12 Connector:
The M12 connector is a rugged and compact connector commonly used in industrial and harsh environments. It is circular in shape and usually has 4 or 8 pins. The M12 connector offers excellent resistance to vibration, dust, and moisture, making it ideal for applications that require reliable connections in challenging conditions. It is commonly used in industrial Ethernet networks, such as those based on the PROFINET standard.
LC Connector:
The LC connector is a small form-factor connector commonly used in fiber optic networks. It features a ferrule with a notch and a push-pull latching mechanism, making it easy to insert and remove from fiber optic ports. The LC connector is designed for high-density installations and offers low insertion loss and excellent signal transmission performance. It is widely used in data centers and enterprise networks where space-saving and high-performance fiber connections are required.
SC Connector:
The SC connector, short for Subscriber Connector or Standard Connector, is another common type of fiber optic connector. It is square-shaped and features a push-pull latching mechanism. The SC connector provides good optical performance and is easy to install and remove. It is commonly used in both single-mode and multimode fiber optic systems and is popular in telecommunications, cable TV, and internet service provider (ISP) networks.
Termination Techniques for Ethernet Cables
Terminating an Ethernet cable is a crucial step in creating a reliable network connection. When it comes to termination, there are different techniques to choose from, depending on the specific needs and requirements of your network setup. In this section, we will explore some of the most commonly used termination techniques for Ethernet cables.
1. Crimping: Crimping is the most widely used technique for terminating Ethernet cables. It involves attaching a connector, typically an RJ-45 connector, to the ends of the cable. To terminate the cable using crimping, you will need a crimping tool and the appropriate connectors. The process involves carefully stripping the cable, aligning the wires in the correct order, and crimping the connectors to secure them in place.
2. Punch Down: Punch down termination is commonly used in structured cabling systems. This technique involves using a punch-down tool to connect the individual wires of the cable to the corresponding terminals on a patch panel or keystone jack. The advantage of punch-down termination is its reliability and durability, making it suitable for high-density installations.
3. Soldering: Soldering is a more intricate termination technique that involves melting solder to connect the wires to the terminals. While soldering provides a strong and permanent connection, it requires a higher level of skill and precision. Soldering is typically used in specialized applications where a higher level of reliability is required.
4. Compression: Compression termination is commonly used for coaxial cables, but it can also be applied to Ethernet cables. It involves using a compression tool to compress a connector onto the cable, creating a firm and secure connection. Compression termination offers excellent signal quality and reliability, making it suitable for applications that require high-speed data transfer.
5. Toolless: Toolless termination is a newer technique that eliminates the need for specialized tools. It involves using connectors with built-in mechanisms that allow you to terminate the cable without crimping or punching down. Toolless termination is quick and easy, making it suitable for smaller installations or for situations where convenience is paramount.
When choosing a termination technique for your Ethernet cables, consider factors such as the specific application, the level of expertise required, and the desired level of reliability and durability. It is always recommended to follow manufacturer guidelines and industry best practices to ensure a proper and secure termination.
After exploring the various types of connectors used to terminate an Ethernet cable, it is clear that the choice of connector plays a crucial role in ensuring reliable and high-performance network connections. Each connector has its own advantages and limitations, making it important to understand the specific requirements of your network infrastructure.
Whether it’s the familiar RJ-45 connector for twisted-pair cables or the versatile LC, SC, or ST connectors for fiber optic cables, selecting the appropriate connector will ensure seamless and efficient transmission of data. By considering factors such as cable type, distance, bandwidth needs, and installation environment, you can make an informed decision that meets your networking requirements.
Remember, a well-terminated Ethernet cable not only safeguards against signal loss and interference but also helps in maintaining optimal network performance. So, make sure to choose the right connector and follow proper termination techniques to enjoy a reliable and efficient network connection.
FAQs
Q: What is an Ethernet cable?
A: An Ethernet cable is a type of network cable used to connect devices, such as computers, routers, and switches, to establish a wired network connection. It allows data to be transmitted at high speeds over the local area network (LAN) or wide area network (WAN).
Q: What are the different types of Ethernet cables?
A: The most commonly used types of Ethernet cables are Cat5, Cat5e, Cat6, and Cat7. These cables differ in terms of their performance, bandwidth, and ability to transmit data at higher speeds.
Q: What connectors are used to terminate an Ethernet cable?
A: The connectors commonly used to terminate an Ethernet cable are RJ45 connectors. These connectors have eight pins and are designed to precisely align with the corresponding pins in the Ethernet port of a device.
Q: Do all Ethernet cables use the same type of connectors?
A: Yes, all Ethernet cables use the same type of connectors, which are the RJ45 connectors. These connectors ensure a secure and reliable connection between the cable and the network device.
Q: Can I terminate an Ethernet cable without any specialized tools?
A: While it is possible to terminate an Ethernet cable without specialized tools, it is highly recommended to use a crimping tool. This tool helps to ensure proper alignment and secure connection between the wires and the connectors, resulting in a reliable Ethernet cable.
Q: Are there any other connector options for Ethernet cables?
A: While the RJ45 connector is the most common option for Ethernet cables, there are other connector types available, such as the TERA connector and the GG45 connector. However, these connectors are not as widely used as the RJ45 connector.
