Are you on the lookout for the top-performing 20-pin connectors to enhance your electronic devices for the year 2023? Look no further! In this guide, we will dive into the 8 best 20-pin connectors that will revolutionize the way you connect and interact with your devices. Whether you are an electronics enthusiast or a professional in the industry, these connectors have been carefully selected based on their reliability, durability, and compatibility, ensuring seamless performance for years to come. Stay tuned to discover the perfect 20-pin connector that caters to your specific needs and unlocks the full potential of your electronic devices in 2023.

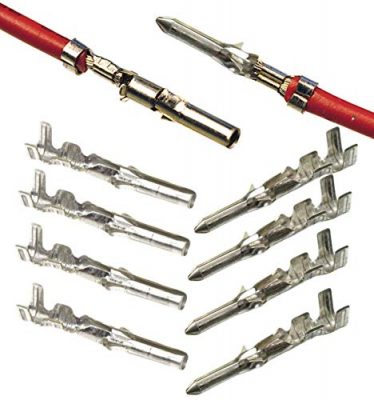

The (20 Pair) Molex 18-24 AWG Gauge Pins 0.062" Male and Female Pins Connector is a crimp style pin connector that is perfect for computer power supplies. It comes in a strip packaging, making it convenient to use. This connector belongs to the Standard .062 Series by Molex, ensuring its quality. Special features include its low-halogen properties. With 20 male and 20 female pieces included, you'll have everything you need for your project. Although it only comes in one gauge set, it works well for many applications. However, some users found it difficult to separate the individual molex connectors from the strip. Overall, this product provides great value and is a simple and reliable solution for repairing or building Molex connectors.
Key Features
Specifications
Pros
Cons
The (20 Pair) Molex 18-24 AWG Gauge Pins 0.062″ Male and Female Pins Connector is a reliable and cost-effective option for computer power supplies. Its strip packaging may make it a bit challenging to separate the individual connectors, but once you do, they work well. The fact that it only comes in one gauge set may limit some applications, but the quality and value it offers are still commendable. If you’re in need of Molex connectors for your project, this product is definitely worth considering.

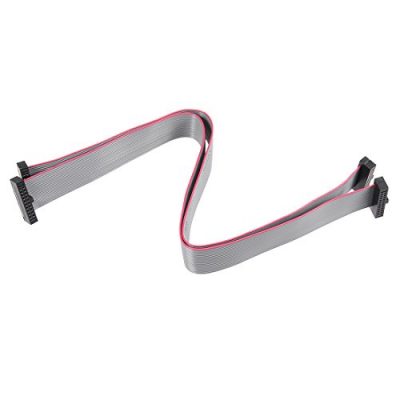

The uxcell IDC 20 Pins Connector Flat Ribbon Cable is a high-quality cable designed for internal wiring in office equipment and video machines. With a length of 20cm and a pitch of 1.27mm, this cable is easily and directly inserted into PCBs. The connector type is female, and the total width is 12.6mm. Made from durable plastic, this cable comes in a pack of two. It is suitable for a variety of applications and offers reliable performance. The vibrant red color adds a pop of visual interest to your setup. Overall, this flat ribbon cable provides a convenient and efficient solution for your wiring needs.
Key Features
Specifications
Pros
Cons
The uxcell IDC 20 Pins Connector Flat Ribbon Cable is a reliable and convenient solution for internal wiring needs. With its durable plastic construction, easy insertion into PCBs, and suitability for a variety of applications, this cable is a great choice. The pack of two provides extra value for money. However, it is important to note that this cable may not be suitable for all wiring scenarios, so it is recommended to check the specifications and requirements of your specific project before purchasing. Overall, this cable offers good performance and functionality at an affordable price.

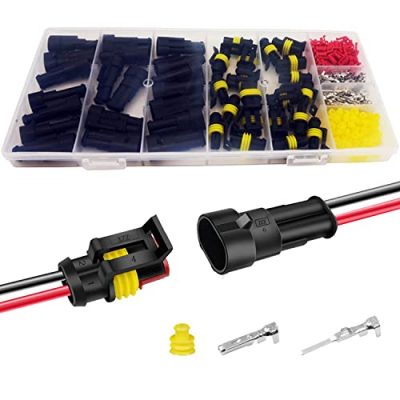

The Twippo 20 Kits 2 Pin Connector Automotive Electrical Connectors provide a reliable and convenient solution for your automotive wiring needs. With 20 sets of waterproof connectors included, these 2 pin connectors are ideal for 16-22 AWG wires. They are made of high-quality materials, ensuring high chemical stability, electrical conductivity, and waterproof capabilities. The buckle design ensures secure insertion and prevents slipping out. These connectors are easy to install and provide a reliable and safe connection. They are suitable for various applications in motorcycles, trucks, boats, and more. With a 365-day payment refund guarantee, Twippo offers excellent service. Overall, these connectors are a great choice for anyone in need of automotive wire connectors.
Key Features
Specifications
Pros
Cons
The Twippo 20 Kits 2 Pin Connector Automotive Electrical Connectors offer a reliable and affordable solution for your automotive wiring needs. With high-quality materials and excellent performance, these connectors provide secure and safe connections. They are versatile and can be used in motorcycles, trucks, boats, and more. While they may require specific crimping tools for proper installation, they offer a great alternative to more expensive connectors. However, they may not be very pliable in cold weather, so caution should be exercised. Overall, these connectors are a practical choice for anyone looking for durable and convenient automotive wire connectors.

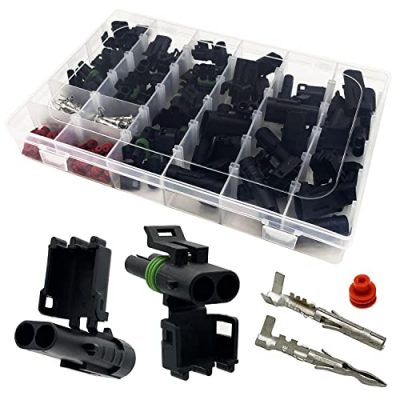

The Twippo 20 Kits 2 Pin Connector Weather Pack Connectors Kit is a high-quality and reliable solution for your automotive electrical connection needs. This kit includes 20 sets of waterproof electrical connectors, complete with male and female terminals and silicone rubber cable seals. Made from environmentally-friendly materials, these connectors offer excellent chemical stability, electrical conductivity, and are both waterproof and dustproof. The connectors feature a buckle design for quick and secure insertion, ensuring a reliable connection. They are easy to install and suitable for use in various automotive applications. The Twippo 20 Kits 2 Pin Connector Weather Pack Connectors Kit is backed by a 365-day payment refund guarantee, making it a risk-free purchase. Upgrade your electrical connections with this reliable and versatile kit.
Key Features
Specifications
Pros
Cons
The Twippo 20 Kits 2 Pin Connector Weather Pack Connectors Kit is a reliable and versatile solution for automotive electrical connections. With its high-quality materials, secure buckle design, and excellent conductivity, it provides a durable and reliable connection. The kit includes everything you need for a complete installation, and its waterproof and dustproof properties make it suitable for various applications. While some users may find the connector size too large and require a dedicated crimping tool, overall, this kit offers great value for its price. Whether you’re a beginner or a professional, this kit is worth considering for your electrical connection needs.

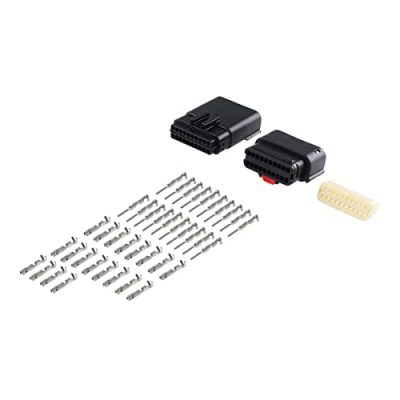

The HQPARRTS 20 Pin Wire Connector is a high-quality, waterproof and sealed kit designed to withstand harsh weather conditions. It is perfect for automotive, marine, off-road, construction, and agricultural applications, as well as truck, bus, and RV use. The MX150 Sealed Connectors feature an environmentally sealed interconnection system and can accommodate a wide range of wire styles. With the MX150L, you don't need any additional wire seals, locks, or CPA locks. The connectors are easy to install and cost-effective. Please ensure that these connectors are suitable for your needs before purchasing.
Key Features
Specifications
Pros
Cons
The HQPARRTS 20 Pin Wire Connector is a reliable and durable solution for connecting wires in challenging environments. Its waterproof and sealed design ensures optimal performance, while its versatility and compatibility with different wire styles make it suitable for a wide range of applications. The connectors are easy to install and cost-effective, offering great value for the price. However, it is essential to verify that the parts are the correct ones needed before making a purchase. Overall, the HQPARRTS 20 Pin Wire Connector is a reliable choice for anyone in need of a high-quality wire connector.

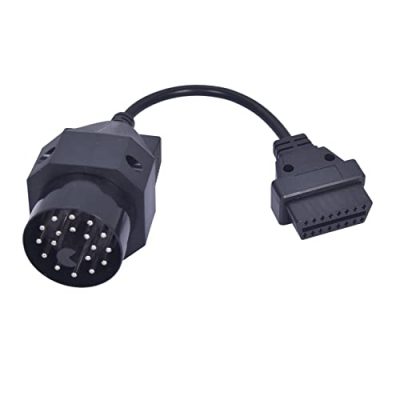

The 20 pin to 16 pin OBD2 Adapter is the perfect solution for connecting diagnostic tools with an OBD2 interface to the 20 pin socket of BMW cars. It works on all BMW models with a 20 pin diagnostic connector, including the E36, E46, E39, E38, and E53. Please note that this adapter is just an adapter and not a scanner. It allows you to connect your BMW to a car reader for inspection. The package includes only one piece of the 20 pin connector adapter cable. Overall, it is a useful tool for BMW owners who want to connect their cars to diagnostic tools for maintenance and repairs.
Key Features
Specifications
Pros
Cons
The 20 pin to 16 pin OBD2 Adapter is a handy tool for BMW owners who need to connect their cars to diagnostic tools. It works on a variety of BMW models and allows you to easily interface with a car reader for inspection. However, there have been some reports of poor quality control, so it’s important to double-check the functionality of the adapter upon arrival. Overall, if you’re in need of an adapter to connect your BMW to an OBD2 interface, this product is worth considering.

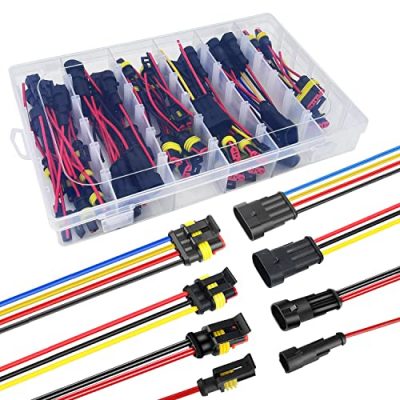

The Twippo Waterproof Wire Connectors are high-quality automotive electrical connectors designed to provide reliable and safe connections. With 26 sets of connectors and 20 gauge wire, these waterproof connectors are perfect for various 12-volt applications in motorcycles, trucks, boats, and more. They are made of high-quality materials that offer excellent chemical stability, electrical conductivity, and waterproof capabilities. The buckle design ensures secure insertion and prevents slipping. These connectors use a high-precision copper plating process for improved conductivity and are easy to install under soldering and crimping. However, some users have reported issues with the container not staying sealed and the locking clips breaking. Overall, the Twippo Waterproof Wire Connectors are a useful and convenient solution for automotive electrical connections.
Key Features
Specifications
Pros
Cons
The Twippo Waterproof Wire Connectors provide a convenient and reliable solution for automotive electrical connections. With their high-quality construction and waterproof capabilities, these connectors offer excellent performance and ease of installation. They are suitable for various vehicles and marine applications, making them a versatile choice for DIY projects or professional use. However, users should be cautious about the container’s sealing and the durability of the locking clips. Overall, these connectors are a valuable addition to any electrical install or repair, providing secure and waterproof connections for a wide range of applications.

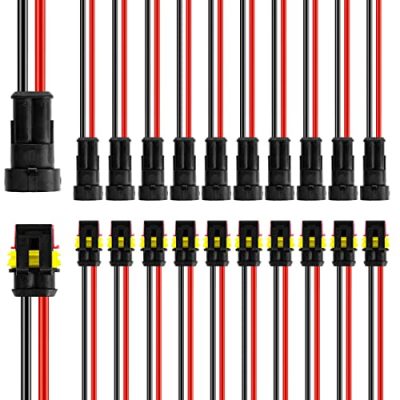

The LanHong 2 Pin Way Electrical Wire Connector is a waterproof connector that comes with a male and female plug. It is made of PA66 nylon, which makes it durable and wear-resistant. With an operating temperature range of -10℃~+80℃, it offers a reliable and safe connection. This connector is easy to install under soldering and crimping and can be used for wire connections in motorcycles, scooters, cars, trucks, marine vehicles, and more. The LanHong 2 Pin Way Electrical Wire Connector is a convenient and weatherproof solution for adding on electrical components to vehicles or trailers.
Key Features
Specifications
Pros
Cons
The LanHong 2 Pin Way Electrical Wire Connector is a versatile and reliable solution for wire connections in vehicles. It offers a solid and secure connection, with a weatherproof design that ensures durability. While it may not be completely waterproof for exterior use, it is still a great option for interior purposes. The connectors are easy to install and use, making it convenient to add or replace electrical components. Considering its affordability, the LanHong 2 Pin Way Electrical Wire Connector is a valuable accessory for anyone looking to enhance the wiring in their vehicles.
Buyer's Guide: 20 Pin Connector
Whether you're an electronics enthusiast or a professional seeking to connect various devices, the 20 pin connector can be a highly versatile and useful component. With its ability to transmit power, data, and signals, this connector type presents a range of possibilities for your applications. To help you navigate the world of 20 pin connectors, we've put together this comprehensive buyer's guide with everything you need to know.
Key Considerations
Before diving into the various aspects of 20 pin connectors, there are a few key factors you should keep in mind during your search:
- Compatibility: Ensure that the 20 pin connector you choose matches the specific devices or systems you intend to connect. Check the pinout configurations, voltage compatibility, and signal types.
- Quality: Look for connectors made by reputable manufacturers that ensure durability and reliability for extended use.
- Application: Determine the purpose of your 20 pin connector. Will it be used for audio and video equipment, computer peripherals, or automotive applications? Understanding your usage scenario can help you focus on connectors with specific features and specifications.
- Connectivity Type: Consider the type of connector you require. Options include straight, right angle, surface mount, and even board-to-board connectors. Choose the one that suits your needs best.
Technical Specifications
When choosing a 20 pin connector, these technical specifications should be taken into account:
- Pin Configuration: The arrangement and assignment of pins, often denoted as pinouts, can vary across different connectors. Ensure that the pin configuration matches your requirements.
- Voltage Rating: Check the voltage rating of the connector to ensure compatibility with your devices. It is crucial to avoid overloading the connector, as it may lead to damage or safety hazards.
- Current Rating: Consider the amount of current that can safely pass through the connector. This specification is crucial, especially if you plan to use the connector for high-power applications.
- Signal Type: Determine the specific signals you need to transmit through the connector, whether it's power, audio, video, data, or a combination. Choose a connector that supports the required signal types.
- Termination Method: Consider the termination method required for your application. Options range from solder pins to crimp contacts, and each offers different ease of assembly and reliability.
- Environmental Factors: Assess the environmental conditions in which the connector will be utilized. Pay attention to factors such as temperature range, moisture resistance, and durability requirements.
Advantages of 20 Pin Connectors
Here are some advantages that make 20 pin connectors a valuable choice:
- Versatility: 20 pin connectors provide greater flexibility with multiple pins and support for various signal types, making them adaptable for a wide range of applications.
- Compact Design: Despite their numerous pins, 20 pin connectors can be designed to be relatively compact, making them suitable for space-constrained applications.
- Efficient Connectivity: With a higher pin count, it's possible to connect numerous devices or transmit multiple signals simultaneously, streamlining your electronic systems.
Maintenance and Troubleshooting
To ensure optimal performance and longevity of your 20 pin connector, follow these maintenance tips:
- Regular Inspection: Periodically inspect the connector and its associated cables for any signs of physical damage, loose connections, or corrosion.
- Gentle Handling: Handle the connector with care, avoiding excessive force that may bend or break the pins.
- Proper Cleaning: If necessary, clean the connector using recommended methods and solutions, ensuring the power is disconnected before doing so.
- Professional Assistance: If you encounter any issues or abnormalities with your 20 pin connector, seek help from a qualified professional to avoid further damage.
Frequently Asked Questions
Q: Are 20 pin connectors universal?
A: No, 20 pin connectors come in various configurations and pinouts, making them specific to certain devices or systems. Compatibility should always be verified before purchasing.
Q: Can I use a 20 pin connector for high-power applications?
A: It depends on the specific connector’s current rating. Some 20 pin connectors are designed for high-power applications, while others are limited to low-power scenarios. Refer to the connector’s specifications for this information.
Q: Are 20 pin connectors backward compatible with lower pin count connectors?
A: In most cases, no. 20 pin connectors are typically designed for a specific pinout and may not be physically or electrically compatible with lower pin count connectors. Verify compatibility before attempting to connect different pin counts.
Q: Can I assemble my own 20 pin connector cables?
A: It’s possible to assemble your own 20 pin connector cables, but proper knowledge, tools, and expertise are required to ensure a secure and reliable connection. Consider seeking professional assistance if you’re new to cable assembly.
Q: Can I use a 20 pin connector outdoors or in harsh environments?
A: Some 20 pin connectors are specifically designed for harsh environments, offering features like increased durability, moisture resistance, and wider temperature ranges. Check the specifications of the connector to confirm its suitability for your environmental needs.
