Introducing the incredible world of ribbon cable connectors for 2023 – a fusion of innovation, functionality, and convenience. In this rapidly advancing era, staying ahead of the curve is crucial, and these ribbon cable connectors are designed to do just that. Offering unparalleled performance and versatility, these 8 amazing connectors are set to revolutionize the way we connect devices and transmit data. With their sleek designs, enhanced durability, and cutting-edge technology, these ribbon cable connectors are poised to redefine connectivity in the upcoming year. Prepare to be amazed by their seamless integration, efficiency, and robust capabilities, as the future of cable connectivity unfolds before your eyes.

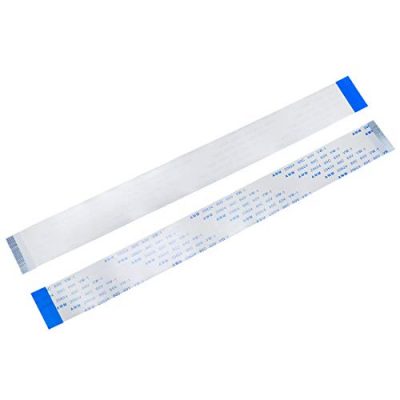

The Xiaoyztan 40 Pin Flexible Flat Ribbon Cable is a pack of 20 cables designed for screen displaying projects. The cable is made from high-quality materials like cede territory line, silver paste, aluminum foil, copper foil, silver foil, conductive cloth, acetate cloth, etc. It features a 40-pin design with a pin pitch of 0.5 mm and a total cable length of 200mm. Each end of the cable is reinforced with a stiffener for easier insertion and strain relief. If you encounter any product quality issues, the seller offers excellent aftersales support. This cable is compatible with various devices such as LCD TVs, car audio systems, DVD players, and laptops.
Key Features
Specifications
Pros
Cons
The Xiaoyztan 40 Pin Flexible Flat Ribbon Cable is an excellent choice for anyone needing to replace or repair screen connections in LCD TVs, car audio systems, DVD players, or laptops. With a pack of 20 cables, it offers great value for money. The cables are well-made and durable, ensuring reliable performance. The reinforced ends make installation easier and provide strain relief for enhanced longevity. Customers have praised this product for its effectiveness in fixing screen issues and saving them from costly repairs or replacements. If you’re looking for a dependable and affordable solution for your screen connection needs, the Xiaoyztan 40 Pin Flexible Flat Ribbon Cable is highly recommended.

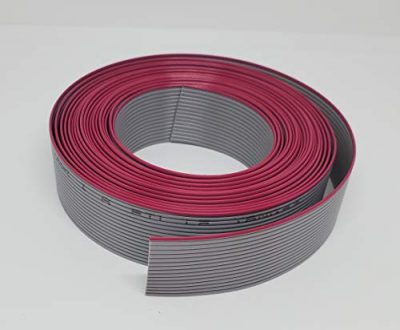

Introducing the Connectors Pro IDC 16-pin, 16 Conductors Flat Ribbon Cable! This high-quality cable is perfect for your electrical projects. With a length of 10 feet and a pitch of 0.1 inches, it is designed to connect with 2.54mm 0.1-inch connectors. The wire is made of 28 AWG stranded conductors, ensuring reliable performance and a 300V rating. The cable features a red polarity stripe for easy identification and comes in a grey or blue color PVC insulation. It is ideal for various applications, especially when you need to carry a full 16-bit address bus signal over a considerable distance. Upgrade your project with this durable and high-performing ribbon cable!
Key Features
Specifications
Pros
Cons
The Connectors Pro IDC 16-pin Ribbon Cable is a reliable and high-performing cable that is perfect for various electrical projects. With its 10-foot length and 0.1-inch pitch, it seamlessly connects with 2.54mm 0.1-inch connectors. The cable features quality conductors and a durable construction, ensuring optimal performance. Its grey color and red polarity stripe add a nostalgic touch, reminiscent of older computer floppy drive cables. Whether you need to carry a full 16-bit address bus signal or tackle other complex wiring tasks, this ribbon cable is a great choice. Upgrade your project with the Connectors Pro IDC 16-pin Ribbon Cable and experience its superior quality firsthand!

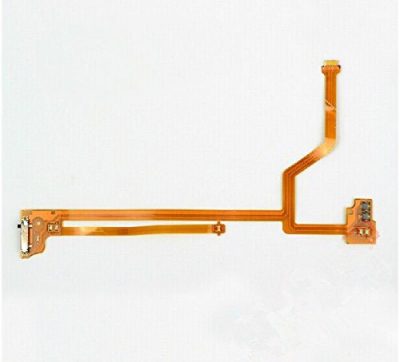

The Gametown LCD Speaker Flex Ribbon Cable Connector Repair Part is a must-have for Nintendo 3DS owners who want to replace their damaged speaker ribbon cable. This flex cable is compatible with the Nintendo 3DS and comes with the necessary tools to ensure proper installation. However, it's important to carefully consider disassembling your device and to have the special skills and techniques required for installation. With this repair part, you can restore the functionality of your Nintendo 3DS control and enjoy your gaming experience once again.
Key Features
Specifications
Pros
Cons
The Gametown LCD Speaker Flex Ribbon Cable Connector Repair Part is a reliable solution for Nintendo 3DS owners facing issues with their speaker ribbon cable. It offers compatibility and includes the necessary tools for installation. However, potential buyers need to be cautious as special skills are required for proper installation. Overall, it is a recommended product for those who are confident in their ability to repair their Nintendo 3DS control.

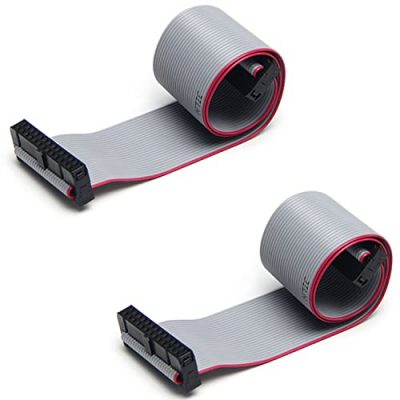

The Fielect 2pcs IDC 26 Pin Connector Gray Wire Flat Ribbon Cable Connector is a high-quality ribbon cable designed for internal wiring in various electronic devices. With a pin pitch of 2.54mm/0.1 inch and a length of 30cm/11.7 inch, it provides easy separation for clean terminations. The cable is made of durable copper wire material, ensuring a secure and reliable connection. It can be easily inserted into PCBs and is suitable for use in office equipment, audio and video machines, and more. The Fielect ribbon cable is versatile, durable, and provides a cost-effective solution for your wiring needs.
Key Features
Specifications
Pros
Cons
The Fielect IDC 26 Pin Connector Gray Wire Flat Ribbon Cable is an excellent choice for anyone in need of a reliable and durable ribbon cable. Its high-grade copper wire material ensures a secure and long-lasting connection. The easy separation feature makes it convenient for clean terminations, and its versatility allows for use in a wide range of electronic devices. Although it lacks fancy end connectors and colorful aesthetics, it provides everything you need at an affordable price. Whether you’re wiring office equipment or audio and video machines, this ribbon cable is a practical and cost-effective solution. Trust Fielect’s quality for all your wiring needs!

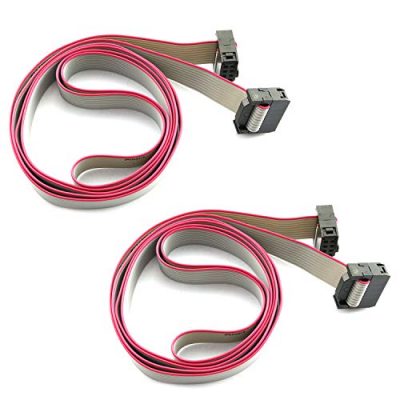

The 2PCS Flat Ribbon Cable is a versatile and reliable cable that is perfect for extending the distance between your LCD display and main board. With a length of 1 meter, this cable provides ample reach for your needs. It is compatible with most Atmel AVR JTAG debuggers, system programmers, and Isp downloads. The cable is not shielded but can be wrapped in aluminum foil to minimize electromagnetic interference. It is well-built and replicates the alternating cable approach direction found in the factory cable. The package includes 2 cables, providing great value for money. Overall, the 2PCS Flat Ribbon Cable is a great choice for those looking to extend the reach of their electronics.
Key Features
Specifications
Pros
Cons
The 2PCS Flat Ribbon Cable offers a practical solution for extending the reach of your electronics. With a generous 1-meter length, it provides flexibility in relocating and positioning your LCD display. While it may not be shielded, the cable can be wrapped in aluminum foil to minimize EMI interference. The cables are well-built and replicate the factory cable’s design. The package includes 2 cables, making it a cost-effective choice. However, it is important to check the fittings and consider the need for additional shielding. Overall, if you need to extend the distance between your LCD display and main board, the 2PCS Flat Ribbon Cable is a reliable and convenient option.

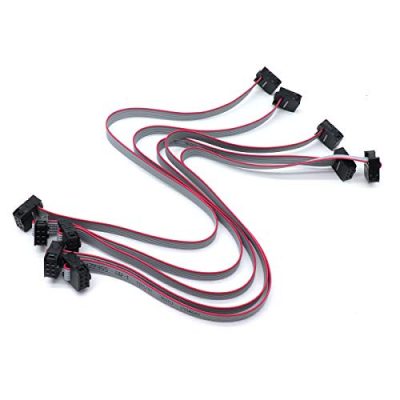

The S SYDIEN 5Pcs 2.54mm Pitch 2 Row 6 Pins F/F IDC Connector Flat Ribbon Cable is a package of 5 flat ribbon cables with a Type 6 Pin Female to 6 Pin Female connection. The cable size is 300mm in length and 7.62mm in width, with a pitch of 2.54mm. It is designed to save space and time on circuit interconnecting assemblies. The conductor ribbon cable can be easily separated for clean terminations with standard wire connectors, jacks, and pins. This cable is versatile and can be used with digital cameras, digital camcorders, laptops, LCD TVs, LCD monitors, debuggers, in-system programmers, ISP downloads, and more. It is a reliable and convenient option for those who need spare cables for their AVR programmer. With a color of grey and a size of 6 Pins Female to Female, this cable offers flexibility and efficiency in various applications.
Key Features
Specifications
Pros
Cons
The S SYDIEN 5Pcs 2.54mm Pitch 2 Row 6 Pins F/F IDC Connector Flat Ribbon Cable offers a reliable and efficient solution for circuit interconnecting assemblies. It saves space, time, and ensures clean terminations with its flexible conductor ribbon cable. The cable is compatible with a wide range of devices, making it suitable for various applications. Its high-quality construction ensures durability and longevity. While there may be occasional issues with connectors installed backwards, overall, this cable provides great value for its price. With positive customer reviews and a rating of 4.9/5, it is evident that this cable is highly recommended by users.

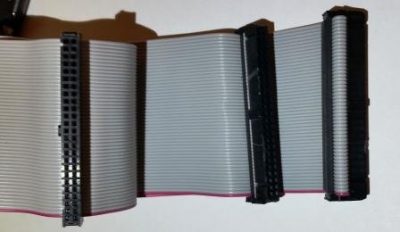

The Connectors Pro PC Accessories 24 Inches 3 Female Connectors IDC 2×25 50P SCSI Internal Flat Ribbon Cable is a reliable and convenient cable for connecting SCSI devices. With a length of 24 inches, it provides ample distance for flexible connections. The cable features 3 female 2×25 50P black connectors, allowing for easy connectivity to SCSI devices. It is made with a grey flat ribbon cable that is individually bagged and brand new. The UL 2651 E97252 105 degree C 300W 28 AWG ensures the cable's durability and safety. This internal SCSI 50-pin flat ribbon IDC cable is compatible with various devices and provides reliable performance.
Key Features
Specifications
Pros
Cons
The uxcell IDC Rainbow Wire Flat Ribbon Cable is a versatile and convenient cable for internal wiring in office equipment, audio and video machines. With a pin pitch of 2.54mm and a length of 11.8 inches, it easily and directly inserts into devices, ensuring an easy and solid connection. The ribbon cable design saves space and time on circuit interconnecting assemblies. The package includes 1 flat ribbon cable and 4 screws for secure installation. The multicolor cable is suitable for various applications, providing flexibility and functionality. Whether you need to connect office equipment or audio and video machines, this IDC ribbon cable is a reliable choice.
Key Features
Specifications
Pros
Cons
The uxcell IDC Rainbow Wire Flat Ribbon Cable is a reliable and convenient solution for internal wiring needs. Its easy insertion and secure connection with screws ensure a hassle-free installation process. The ribbon cable design is a space and time-saving feature, making it suitable for various applications. However, keep in mind that the cable’s 11.8-inch length may not be sufficient for longer setups. Additionally, the limited color options may not suit everyone’s aesthetic preferences. Overall, this IDC ribbon cable is a practical choice for office equipment, audio, and video machines.
Buyer's Guide: Ribbon Cable Connectors
Ribbon cable connectors are essential components in electronic devices, providing a way to connect various electrical components within a device or between different devices. Whether you're a professional or a DIY enthusiast, finding the right ribbon cable connector can make all the difference in your project's success. In this buyer's guide, we'll walk you through the key considerations and factors to keep in mind when purchasing ribbon cable connectors. Let's dive in!
Key Considerations
When selecting ribbon cable connectors, it's essential to consider various factors to ensure compatibility and reliable performance. Here are the key considerations to keep in mind:
- Pin Count: Determine the number of pins required for your project, as ribbon cable connectors come in a wide range of pin counts. Ensure that the connector you choose has the right pin count to match your specific needs.
- Pitch Value: Consider the pitch value of the connector, which refers to the spacing between pins. It is crucial to select a connector with the appropriate pitch value to ensure a proper fit and connection with your cables.
- Mounting Type: Ribbon cable connectors come in various mounting types, including Through Hole (TH), Surface Mount (SMT), and more. Depending on your project requirements, choose the mounting type that best suits your needs.
- Gender: Ribbon cable connectors can have different gender configurations, such as male, female, or even a combination. Ensure that the connector's gender matches the corresponding component you plan to connect it to.
- Termination Type: Consider the termination type of the ribbon cable connector, which indicates how the cable is attached to the connector. Common termination types include IDC (Insulation Displacement Connector) and crimping. Select the termination type that aligns with your application and ease of installation.
- Current and Voltage Rating: It is crucial to check the current and voltage ratings of the ribbon cable connector to ensure it can handle the electrical demands of your project. Exceeding the ratings may result in poor performance or damage to the connector.
- Quality and Durability: Look for ribbon cable connectors made from high-quality materials to ensure durability and long-lasting performance. Additionally, consider connectors with features like strain relief or locking mechanisms for added durability and stability.
Types of Ribbon Cable Connectors
Ribbon cable connectors come in various types, each designed for specific applications. Here are some commonly used types you may encounter:
- D-Sub Connectors: These connectors feature two rows of pins enclosed by a D-shaped metal shield. They are frequently used for data transfer applications, especially in computer and networking equipment.
- IDC Connectors: Insulation Displacement Connectors (IDC) are popular for ribbon cable connections. They allow for easy installation without soldering by using sharp contacts that slice through the cable's insulation to make a connection.
- FFC/FPC Connectors: Flexible Flat Cable (FFC) and Flexible Printed Circuit (FPC) connectors are typically used with flexible ribbon cables. They feature a clamping mechanism to secure the cable in place, making them suitable for space-constrained applications.
- Board-to-Board Connectors: These connectors enable the connection between two circuit boards. They come in various configurations, such as stacking or mezzanine connectors, allowing for reliable and secure interconnection.
- Wire-to-Board Connectors: Used to connect ribbon cables to a PCB, wire-to-board connectors offer a secure and reliable connection. They are commonly found in applications like power supplies, displays, and audio/video equipment.
FAQs (Frequently Asked Questions)
Q: Can I use any ribbon cable connector for my project?
A: No, it is crucial to ensure compatibility between the ribbon cable connector and your specific project requirements, including pin count, pitch value, mounting type, and termination type.
Q: Are ribbon cable connectors reusable?
A: While some connectors allow for disconnection, reusability depends on the connector type and the wear and tear it undergoes during use. It is recommended to follow the manufacturer’s guidelines for connector reusability.
Q: How do I determine the pin count of my ribbon cable connector?
A: The pin count is determined by the number of conductors or contacts required for your particular application. Count the number of wires/contacts in the ribbon cable to identify the required pin count.
Q: What is the difference between male and female ribbon cable connectors?
A: Male ribbon cable connectors have exposed pins or contacts, while female connectors have corresponding sockets or receptacles to receive the male pins. Ensure you select the appropriate gender for your project.
Q: Are ribbon cable connectors interchangeable?
A: Ribbon cable connectors are not universally interchangeable, as variations exist in pin count, pitch value, and other parameters. Always confirm compatibility before attempting to interchange connectors.
